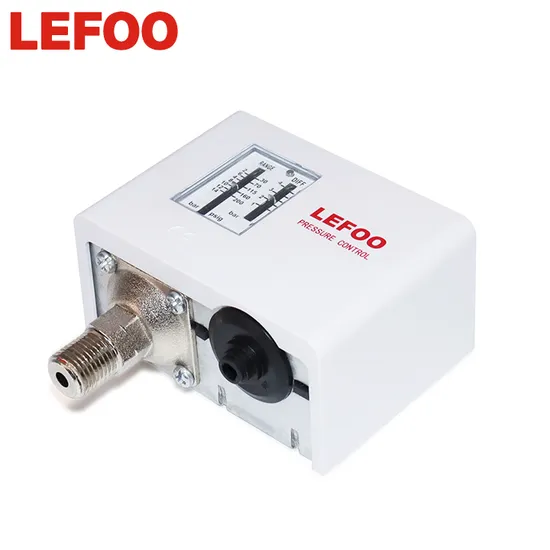

Lefoo Lf55 High Quality Adjusting Water Pump Pressure Switch Pressure Control

Product Description

PRODUCT DESCRIPTION LF55 Series pressure switches are used to control the pressure of compressor in refrigerant system, also available in air or water fluid. This series have quite stable performance with internal micro- switch structure. Standard mounting bracket are provided.

Rated Amps.(A)\Rated Voltage(V)	125VAC	250VAC	24VDC
Full Load	20A	10A	8A
Locked Roter	72A	72A	64A
Temperature	-10~120

Model	Range(bar)			Differential (bar)			Factory Setting(bar)			Max Operating Pressure(bar)
		Min	Max	Min	Max	OFF	ON
LF5502	-0.5	2	0.2	0.7	1	0.5	16.5
LF5503	-0.5	3	0.35	1.5	2	1	16.5
LF5506	-0.5	6	0.6	4	3	2	16.5
LF5506M	-0.5	6	Reset Differential≤1bar			3	Manual Reset	16.5
LF5508	-0.2	7.5	0.7	4	3	2	20
LF5510	1	10	1	3	6	5	16.5
LF5514	2	14	1	4	10	8	20
LF5516	3	16	1	4	10	8	35
LF5520	5	20	2	5	16	13	35
LF5530	8	30	Fixed 3 to 5bar			20	15~17	35
LF5530M	8	30	Reset Differential≤4bar			20	Manual Reset	35
LF5530D	5	30	3	10	20	15	35
LF5532	8	32	2	6	20	17	35
LF5542	8	42	4	10	30	25	46.5

APPLICATIONS RELATED PRODUCTS WHY CHOOSE US ABOUT LEFOO PACKING & DELIVERY FAQ Q:What kind of products do you offer ? A:Lefoo Industrial Co.,Ltd is focusing on RO booster pump, peristaltic pump and rotary vane pump, has became one of the leading micro pump brands in China and even in the world. Zhejiang Lefoo Sensing Technology Co., Ltd is specializing in pressure sensors, pressure transmitters, differential pressure transmitters, pressure switches, pressure controllers, temperature & pressure integrated transmitters and other pressure Sensing and control products, as well as temperature and humidity transmitters, CO2 transmitters, air speed transmitters, hydrogen sulphide transmitters, ammonia transmitters and other environmental gas products. Q: Are you manufacturer ? A: Yes, we are manufacturer with 3 factories. Q: Can I get samples? A:Yes, we have materials in stock to help you to get the samples as soon as we can. Q: Can you make customized products ? A: Yes, customized is accept, please contact us for specific requirements. Q: Can I to be your distributor ? A: Please contact us directly for details. Q: What's your warranty ? A:Normally one year warranty.

---
