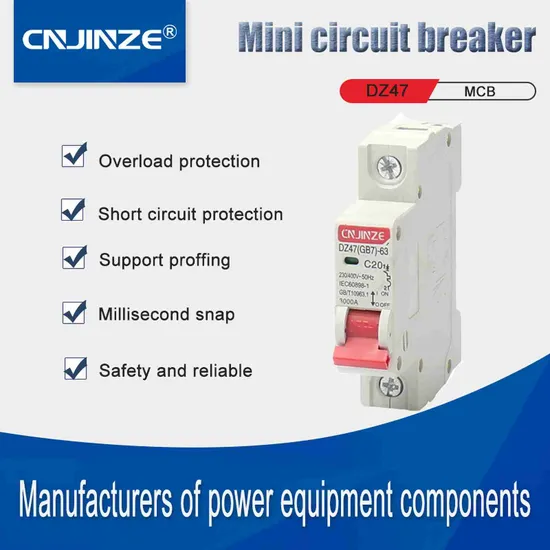

Manufacturer′s Direct Sales of Dz47 New High Breaking Miniature Circuit Breaker (MCB)

Product Description

Free Samples Can Be Provided

Model	MINI CIRCUIT BREAKER
Code	DZ47-63
Standard		IEC60898-1
Electrical features	Rated current in	A	1 2 3 4 6 10 16 20 25 32 40 50 63
	Poles		1P,2P, 3P, 4P
	Rated voltage Ue	V	240/415
	Insulation coltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	6000
	Rated impulse withstand voltage (1.2/50)Uipm	V	4000
	Dielectric test voltage at and ind.Freq.for 1min	KV	2
	Pollution degree		2
	Themo-magnetic release characteristic		B(3-5In) ,C(5-10In),D(10-20In)
Mechanical features	Electrical life		4000
	Machanical life		10000
	Protection degree		IP 20
	Reference temperature of setting of thermal element	°C	30
	Ambient temperature(with daily average≤35°C)	°C	-5~+40
	Storage temperature	°C	-25...+70
Installation	Terminal connection type		Cable/Pin-type busbar
	Terminal size top/bottom for cable	mm²	25
	Terminal size top/bottom for busbar	mm²	25
	Tightening torque	N*m	2.0
	Mounting		35mm DIN rail
	Connection		From top and bottom

Packing details:

NAME	SPECIFICATIONS	UNIT	PCS/CARTON	CARTON VOLUME(MM) L*W*H	G.W(KG)	N.W(KG)
DZ47-63	1P 1-63A 3KA/6KA	PCS	240	423*340*238	22.45	21.00
DZ47-63	2P 1-63A 3KA/6KA	PCS	180	423*340*238	22.45	21.00
DZ47-63	3P 1-63A 3KA/6KA	PCS	80	423*340*238	22.45	21.00
DZ47-63	4P 1-63A 3KA/6KA	PCS	60	423*340*238	22.45	21.00

Zhejiang Jinze Electrical Appliances Co., Ltd. is located in the beautiful national scenic areas of Yandang Mountain and Leqing Bay. Formerly known as Yueqing Tengyuan Electric Appliance Factory, it was established in September 2003. After continuous efforts to develop, it was renamed as Yueqing Jinze Electric Co., Ltd. In March 2009. After ten years of development, in order to adapt to the growth and development of the enterprise, the company was upgraded to Zhejiang Jinze Electric Co., Ltd. In February 2015. Zhejiang Jinze Electrical Appliances Co., Ltd. is its main subsidiary enterprise; Established in 2017, it is a professional manufacturer of distribution boxes, circuit breakers, residual current circuit breakers, AC contactors, spring coils, terminals, coils, hollow coils, signal lights, button switches, and low-voltage electrical accessories, providing high-quality electronic components for machine manufacturers

---
