CE Full Automatic High Speed 1370mm Paper Sheeter Paper Cutting Machine (SQZ-137CTN KL)

Product Description

CE Full Automatic High Speed 1370mm Paper Sheeter Paper cutting machine
(SQZ-137CTN KL)

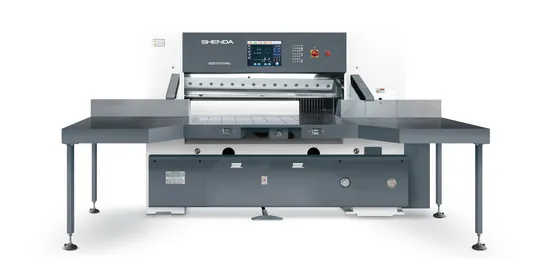

1.The picture of our machine
2. Introduction SHENDA SQZ-137CTN comply with the most advanced industry standard design and production, equip with SHENZHEN dataschalt industrial touch screen, multi-language user interface, easy programming, easy operation. It can achieve multi-machine communications and remote computer management with remote diagnostics, and shortcut keys which is easy to understand. Mached with TAIWAN ABBA high-precision slotless double-rail, the servo motor has many functions: pushing paper structure, positioning accuracy 0.01mm, stepless speed regulation, the maximum speed of 24m/min. Equip with automatic knife changing assisyant functions can achieve knife changing operation. German design of the double-loop,dual-channel hydraulic system, the whole CE standards.
3.Main Specification

MODEL	SQZ-137CTN KL
Cutting width(mm)	1370
Max.cutting height(mm) (without false clamp plate)	165
Max.cutting length(mm)	1450
Main motor power(kw)	5.5
Net weight(kg)	4700
Width with sideway(mm)	2870
Without sideway(mm)	2385
Machine length	2785
Machine height	1650
Front table length(mm)	735
Table height(mm)	900
Clamp pressure min(dan/bs)	150
Max(dan/bs)	5500
Knife thickness(mm)	13.75
Grinding reserve(mm)	60
Without false clamp(mm)	25
With false clamp(mm)	95
Cutting speed(mm)	45
Voltage(three-phase)(v)	361-339
Packing size(L*W*H)(mm)	2950*1550*2000

4. The advantage of our company
(1)More than 95% of the parts are processed intensively by workers of our company who has many years experience in this field.
(2)Having nearly 30 years experience in paper cutting machine, our machine are in great demand at home and abroad.
(3)We have a department specialize in after-sales service in our headquarter. Any questions, please call us without hesitation. We will do our best to solve it as soon as possible.
(4)We have our own warehouse to ensure the supply of spare parts at any time.
(5)Strictly follow CE and ISO9001 standard to produce and debug machine.
5.THE SYSTEM OF COMPUTER:
1.The displaying panel use 15 inch, you can adjust the color by yourself.
2.They have the high quality colors(25600), their storage can reach 170 groups,every group have 250 cut, Its storage time can reach 300,000 hours.
3.The multi-language operating interface, such as Chinese,English,Spanish...
4.It has luminous shortcut key so as to ensure the high stability.
6.THE APPARATUS CONTROLLED SYSTEM:
1. Adopts Switzerland ABB, German MULLER, Japan OMRON.
2. Servo motor is from Japan YASKAWA.
3. Air pump is from ZHEJIANG SENSEN.
7.THE PAPER PUSHER CONTROLLED SYSTEM:
1.Roller ball lead screw: TBI
2.Double rail guide way: TBI
8.THE HYDRAULIC SYSTEM:
1.Adjustable-pressure double-hydraulic system(paper pressing and cutting both by hydraumatic)
2.combined valve from German, ISO approved hydraulic units.
3. Gear pump from ITALY.
9.THE SAFETY PROTECTED SYSTEM:
1.Extensible and precise infrared protective device from Shanghai Zhonghu photocell Control which reaches CE standard.
2. Blade-Replacement Device with safety and convenience.
3. Air cushion and chromeplating platform of photoelectricity protective device.
4. Underlay cutter frame.
5. The closed paper pusher frame.
6. Machine lock,safety bolting,the safety button and light grid.
7.The driving cutting part uses worm.
10.THE ACCESSORY WITH MACHINE:
1. Tool box: 1 set
2. Manual book
3. Operational CD
4. Guarantee sheet(details in contract)


11.THE PAYMENT TERMS:
30% to be paid as deposit before producing, balance before shipment.
12.THE DELIVERY TIME:
About 30 to 40 days after receipt of the deposit.(If we have no in stock)
13.Packing:
Wooden case

---
