Pulp Refiner Machine High Consistency Refiner for Paper Mill

Product Details

Product Description

Product Description
Product Description

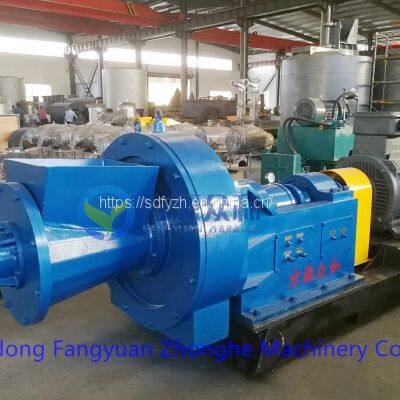

FGM HIGH CONSISTENCY REFINER MACHINE
FGM High Consistency Energy Saving Refiner Machine is the ideal equipment, which is used to process chemical pulp, semi chemical machanical pulp, machanical pulp, high yield pulp of cold-soaking method in modern paper making industry. It has less fiber cutting, obvious effect on fiber spinning, good flexibility of fiber, it also can protect the length of short fiber effectively such as hard wood and grass.
The application range of high consistency grinding to slurry is wide. It can be separated into high quality fiber with its high rotation speed and suitable grinding clearance, whether it is complex of tree species, large material difference, or leftover material after wood processing, and commercial pulp board, waste paper and bagasse.

Model of mill	FGM600	FGM-700	FGM-800	FGM-900	FGM-1000
Diameter of grinding disc(mm)	Φ600	Φ700	Φ800	Φ900	Φ1000
Production capacity(T/D)	15-20	25-35	40-50	50-70	70-90
Concentration of inflow pulp(%)	10-30	10-30	10-30	10-30	10-30
Power of main motor(kw)	90-110	132-160	185-220	250-280	315-355
Increase value of beating degree	6-30°R	6-30°R	6-30°R	6-30°R	6-30°R

Packaging & Shipping
Company Information
Shandong Fangyuan Zhonghe Machinery Co., Ltd(Formerly Zhucheng Fangyuan Machinery Co., Ltd) is the backbone enterprise specializing in the production of environmentally-friendly pulping equipment, tissue paper machine and sewage treatment equipment, the main products include two categories, more than 50 series, the production of paper pulp making equipment, such as FGM high consistency energy saving refiner machine, sewage treatment equipment, with high technical content, it has reached the domestic advanced level in the same industry.
Fangyuan Zhonghe adhere to the business purpose and policy of "customer is the first" and "unity and pragmatism, striving for excellence", introduces the modern science and technology and management methods, and constantly introduce excellent talents and modern equipment, breaks through innovation, strives for excellence, the excellent quality makes company's products develop continuously in the fierce market competition. The FGM high consistency energy saving refiner machine we manufactured were sold well all over the country and exported to Southeast Asia, Central Asia, Africa and other countries and regions.
Q1. Are you a manufacturer?
A: Yes, we have been concentrating on this series of products for 20 years' experience
Q2. How to proceed an order for the FGM high consistency energy saving refiner machine from factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production and shipping.
Q3. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
Q4. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be finished before the guarantee date.
Q5: Do you offer guarantee for the FGM High consistency energy saving refiner machine?
A: Yes, under the right condition , we offer different time warranty for our products.
Q6. How to pack the FGM high consistency energy saving refiner machine?
A: Standard oversea packages or according to customer's requirement will be used.
If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
Q7. How to install after the FGM high consistency energy saving refiner machine arriving destination?
A: We will provide detailed drawings to you. If it is necessary, we will send technical engineers to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.

---
