Spindle Move Type CNC EDM Sinker Machine

Product Description

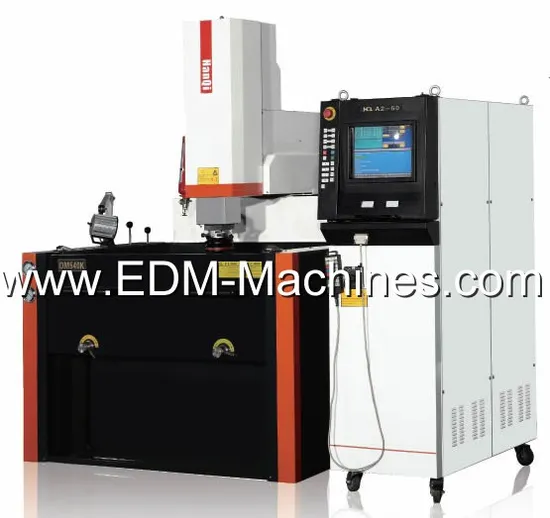

CNC Die EDM Sinker Machine DM540K
Worktable fixed type CNC Sinker EDM machine
Mirror grade filter system
Marble precision worktable
Sodick EDM technology support controller system
Famous parts like Panasonic servo motor, HIWIN linear guideway, HIWIN ball screw, Schneider electrical to make sure quality. The system with a lot advanced technology for example automatic process function, automatic positioning function, automatic clean arc and short circuit. It includes tool raise high-speed adaptive system, discharge pulse detection system and energy pulse control system to short machining time and get best precision
CNC Die EDM Sinker Machine DM540K Specification
Item DM540K
Machine Size 1640*1050*2150mm
Machine Weight 3800kg
Machine Power 9kw
Worktable Size 800*500mm
Loading 1800kg
Machining area Size 13000*920*500mm
Distance from spindle to table 600mm
X,Y,Y Travel 500*400*300mm
Max Current 50A(75,100A)
Max electrode weight 80kg
Max speed ≥500 mm²min
Drive type AC servo direct drive
Min electrode wear rate 0.05%
Roughness Ra≤0.1um
Min drive unit 1um
Coordinate Quantity 60
Display 15-inch LCD screen,Touch screen
Each Axis Compensation Steps error compensation, backlash compensation for each axis
Each axis Resolution 0.4um
Interpolation Method lines, arcs, spirals, etc
Processing Discharge Conditions Registration function 1000 conditions (C000-C999)
Input Range + 9999.999 ~ -9999.999
Offset Function 1000pcs offset H000-H999
CNC Die EDM Sinker Machine DM540K Parts List
Parts Original
XYZ guideway Taiwan Hiwin linear guideway
XYZ Ball screw Taiwan Hiwin ball screw
X,Y,Z motor Panasonic AC servo motor and driver
Main board Taiwan AAEON Industrial computer
Capacitance Japan Kingbox
Circuit breaker Schneider
LCD Taiwan AUO Industrial LCD
Power Taiwan MeadWell
Contactor Taiwan T-Verter
Air switch and limit switch Omron
Communication wire and cable Japan Hitachi
Connector Nanshi
IC chip NXP/ATMEL/ALTERA
Diodes, transistors America Vishay
Three rectifier bridge Japan SANTEX
Emergency stop Japan IDEC
Intermediate relay Japan IDEC IZUMI
Optocoupler Japan Toshiba
Volt-Ammeter Japan YOKOWAGA

---
