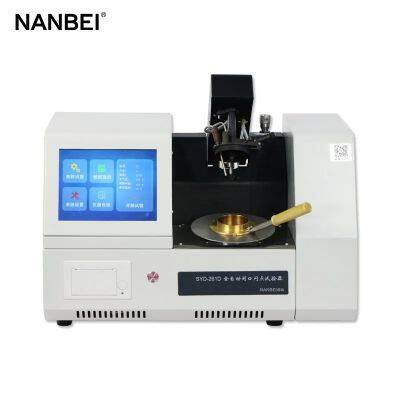

Flash Fire Point Apparatus Fully Automatic Closed Cup Flash Point Tester
Product Details
Product Details
Product Description
Product Description Fully-automatic closed-cup flash point tester for petroleum products Summary This instrument is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Method for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products. Features 1. It adopts LCD screen to display. Full English man-machine dialog interface. It can preset the parameters of expected flash point,sample mark number, atmospheric pressure, test date,etc.It has menu to prompt and input function of guide type. 2. It adopts simulation tracking display the function curve of temperature rising and test time.It has prompt functions of English mis-operation,test date and test time. 3. It is equipped with standard RS-323,485 computer port.The lower computer can save 100 groups of historical data. The test data can be saved for a long time, transmitted and modified if the instrument being connected with computer. Specification
Power supply
AC(220±10%)V，50Hz
Range
Ambient to 300℃
Repeatability
≤3℃
Reproducibility
≤6℃
Accuracy
0.1℃
Heating rate Procedure A
(5～6)℃/min, Procedure B: (1～1.6)℃/min Automatic control and manually adjustable
Stirring rate：Procedure A
(90～120)RPM, Procedure B: (250±10)RPM Automatic control and manually adjustable.
