Woodworking CNC Engraving and Drilling Machine

Product Description

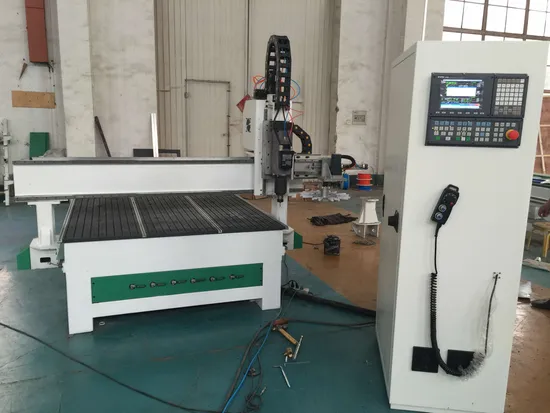

CNC Automatic Tool Changer Machining Center
NA series is a light-duty entrance level CNC router with trustworthy quality and functionality that can fulfill the basic needs in advertising, woodworking and furniture industries. Equipped with ATC facilities, this model can greatly enhance the working efficiency and reduce labor cost.

The standard configuration of NA-2030

Spindle Power	9kw HSD / HQD
Controller	Taiwan Syntec control system
Motor	750w Japanese Jaskawa servo motor
Gear Reducer	Japanese Shimpo planetary gear reducer
Table	Compact grade vacuum suction table
Vacuum Pump	5.5kw Chinese Becker pump
Tool Magazine	ISO-30 8-slot linear plastic steel tool magazine with tool setting blocks
Software	Router-8
Transmission	Precision helical rack and pinion drive & Z axis direct drive
Ball Screw	Taiwan PMI
Guide Rail	Taiwan AMT
Table Size	1500x3000mm
Max. Traveling Size (X/Y/Z)	1600x3100x200mm
Max. Workpiece Height	150mm
Package	plywood box
Net Weight	2500kg

Upgrade:
Positioning air cylinder
Boring aggregate
Pushing device
Protection enclosure
Laser light screen
Spindle cover
Full-body cover
HSK-63F spindle
8-slot carousel plastic steel tool magazine
Movable vacuum suction chucks
+/-90°spindle horizontal processing design
OSAI controller
12KW air cooling spindle
Aluminum alloy tool magazine
Loading & unloading roller table
floating table

Applicable Materials: wood, solid wood, acrylic, PVC, MDF, brass, aluminum, etc.

---
