Product Details
Product Description
Product Description
APPLICATIONS
Deformation under defined load: Test deformation under defined load of tested sample
Load under defined deformation: Test load under defined deformation of tested sample
Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.
TEST STDANARDS
Tensile Test: ASTM D882 ASTM D 638 / ISO 527-1/2
Bend Test ISO-178 / ASTM D 790
Tear Test：ASTM D 624
Peel Test : ASTM D 3330
Compression Test : ASTM D 659
others...
DESCRIPTION

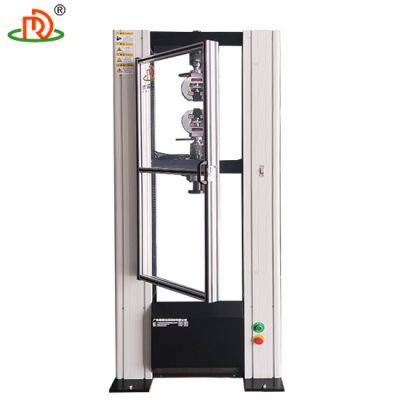

universal test equipment with 10T max force can do tensile test, tear test, peel test, bond test with different clamps for wire,metal,plastic,rubber and other kind of materials.
This universal test equipment uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the screen.
SPECIFICATIONS
Item
| Description
|
Max. Force
| 10T (100KN)
|
Load cell
| Germany brand load cell for high accuracy
|
Control system
| PC with windows 7 system
|
Motor
| Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
|
Force reading
| kgf, Ibf, N, KN, T etc
|
Stoke
| 1100mm including fixture
|
Load cell Resolution
| 1/250,000
|
Load Precision
| within ±0.5%
|
Test speed
| 0.01~300mm/min (adjustable)
|
Software
| TM 2101
|
Curves display
| Load- elongation, Elongation-time, Time-elongation, Stress-strain
|
Data display
| Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
|
Safety features
| E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
|
>>
