Factory Supplier Waste Pet Cola Bottle Label Removing Washing Machine

Product Description

Factory Supplier Waste Pet Cola Bottle Label Removing Washing Machine
Product Overview

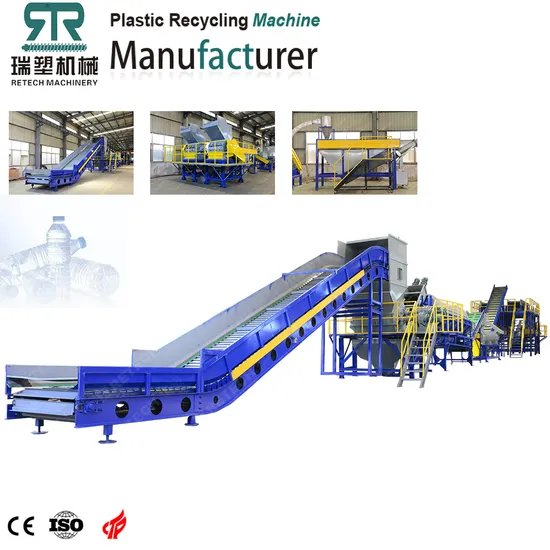

Description Of PET bottle washing machine:
This Retech series plastic PET bottle washing machine is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers. The plastic PET recycling line can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET clean flakes. The production line can be placed in a straight line,also we can install the line as "U" or "L" shape.All your requirements of the plastic PET washing machine can be customized.
Material Processed:
Product Parameters
PET Flake Quality Reference Table:

Moisture Content	<0.9%	Label	<20ppm
PVC	<50ppm	Variegated tablets	<30ppm
Glue	<10ppm	PH	Neutral
PP/PE	<20ppm	Total impurity	<100ppm
Metal	<20ppm	Flake size	12mm, 14mm or according to customer needs

Estimated Plant Parameters:

Capacity(kg/h)	Power Installed(kw)	Required Area(m2)	Manpower	Steam Volume(kg/h)	Compressed Air(m3/min)	Water Supply(m3/h)
500	220	400	8	350	4	1
1000	500	750	10	500	10	3
2000	700	1000	12	800	15	5
3000	900	1500	12	1000	15	6
4500	1000	2200	16	1300	18	8

Detailed Photos
1. Belt conveyor
Function: Conveying the PET bottle to the next step, such as bale opener, crusher etc.
2. Trommel
Function: Raw waste PET bottle has a lot of sands, small stones, metals, whcih can screen some by this machine, to make better washing effect.
3. Mannual Separating table
Function: Machanical separating labels rate is 95-98%, it is not 100%, so we need people choose out the bottle with label and metal bottle by hands. Which will incrase the finals PET bottle's quality.
4. Crusher
Function: Crushing the PET bottle into small pieces.The screen under crusher could be customized, usully it si 12mm.

5. Floating washer
Function: PET flakes will drop into the cold water to wash fully. The rotor on the floating tank can push the PET flakes moving on to arrived next machine.
6. Hot washer
Funtion: Hot washer has two types heating ways: by electric or steam. You can choose freely. Hot water can remove the oil and stick impuroties from the bottle's surface.
7. Dewatering Machine
Function: Removing the water from the PET bottle flakes to dry the flakes. The final moisture of flakes after Plastic PET bottle washing recycling line is less than 1%.
Our Advantages
1. Recycled material: Total impurity content ≤320PPM, Moisture content≤2%.
2. Production Capacity: 300-3500Kg/h
3. Plan design according to Customers' requirements.
4. Simple design, user-friendly operation.
5. Lower investment cost for a high quality and durable machine.
6. Low energy consumption, High output capacity.
7. Usual delivery time: 60 days.
8. Engineers are available to do commissioning work abroad.
Our machine
1.PET bottle washing machine from Retech machinery is applied in PET waste bottle or sheet recycling field.
2.Through crushing, washing and drying process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.
3.The clean PET flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets,etc. The top class flakes can be used to blow bottles again.
4. Recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.
5. Recycling machine output we can supply is from 300kg/h to 3500kg/h.
6.We can also produce the clean PET bottle flakes granulator, to make the clean flakes into pellets (granules).
Company Profile
Loading container
Our Service
THE AFTER-SALE SERVICE OF RETECH MACHINE!
1. After finish the production, we will report the production line, take photos, videos and send them to customers via mail or instant tools.
2. After the commissioning, we will package the equipment by standard export package for shipment.
3. According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4. Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.

---
