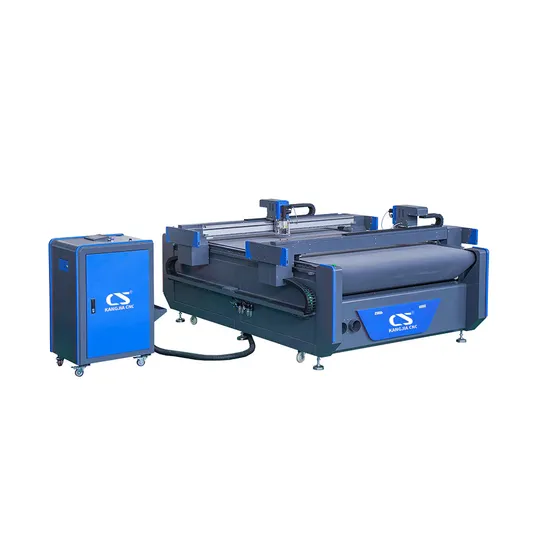

Shoe Making Machine CNC Automatic Footwear Shoe Upper Cutting Machine Price

Product Description

Leather Cut Oscillating knife CNC Fabric PVC Foam Pe board Cutting Machine Manufacture
Features of Oscillating Knife Cutting Machine:
1. Heavy duty machine body, thick steel tube welding structure, whole machine weight more than 3.0 tons, guarantee the high working accuracy.
2. The machine base processed by precise milling machine and stress relieved by heat treatment, ensure long-term use without deformation.
3. Using CNC center to drill holes for installing gear racks and guiding rails, gurantee presicion.
4. Using the most advanced laser interformeter to measure accuracy;
5. Linear auto tool changing system, 8/10pcs tools station, changing tools within 2 seconds.
6. Core components are top brands in the world. Eg, Italy HSD Spindle and tool holder, Taiwan linear square rails, Japan servo motor, etc.
7. Fixed heavy duty spindle router with one or two interchangeable tools position for creasing wheel, drag knife, foam knife and V-knife, offers more versatility.
8. With a CCD positioning system, the machine can cut printed images.
9. Machine workbench size can be customized.
Technical Data

Model	1625/1630/1830/2030/2521optional
Working area	1600*2500mm /1600*3000mm/1800*3000mm/2000*3000mm
Rated power	7-11KW
Fixed mode	Flat table /auto feeding table optional , table structure: whole welding process
Multifunctional heads optonal	Vibration knife (oscillatory knife)
	Circular knife (round knife / rotary knife)
	Oblique knife (V-cut)
	Marking pen
	Punching roller (round punching/v-punching/optional)
	Milling knife
	Drag knife
	Pneumatic knife
	Projector and camera optional
Safety device	Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable.
Material feeding type	Auto feeding or manual feeding
Material fixed type	Vac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kw
Translational velocity	800-1500mm/s
Cutting speed	Max. 1500mm/s (according to different cutting materials)
Cutting thickess	≤60mm (according to different cutting materials)
Cutting material	Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc.
Repated accuracy	≤0.1mm
Cutting type	Mechanical vibration physical cutting
Transmission / driving system	Motor brand Panasonic, YASKAWA, Fuji, Delta
Transmission type / Guide rail	Digital servo motor, linear guide, synchronous belt, rack/spline, ball screw
Instruction system	HP-GL compatible format
Control system	LCD touch screem ( custom made)
Voltage	220V / 380V±10%; 50HZ, 60HZ
Other configuration	Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump

Our Partner:
Application of vibrating knife cutting machine
Osciliting knife cutting machine can cut fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc. What materials can we cut with an oscillating knife?The oscillating knife option can cut a range of materials, here is a few that spring to mind: Medium density foam Rubber Card Fabrics/textiles Correx Fibreboard
About us
Jinan Kangjia CNC Equipment Co., Ltd has focused on CNC equipment production for over 5 years. It is a comprehensive service factory specializing in the production, sales and technical service of oscillating knife cutting machine. It covers multiple fields and industries, such as automotive decoration, toys, garment, leather product, furniture etc. Its R&D level and production capacity has always been in the leading position in the same industry. Our factory is located in Jinan city of China. It covers 10000 square meters, with 150 staffs in total. The production capacity is about 100 unit / month.
Certification
Exhibition
Packing and delivery
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
FAQ:
Q: 1. How can I choose a suitable Knife cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?
Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which matches all the requests with best cost performance.
Q: 3. What should I do if the machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, pls contact us in the first time.
Q: 4. What's the warranty policy?
A:Standard warranty is 18 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can count on our best service for your machine.
Q: 5. If I don't know this machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.
After-Sales Service
1.12 months quality guaranty (knives is 6 months), the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.

---
