Rubber Vulcanizing Press & Vulcanizing Press

Product Description

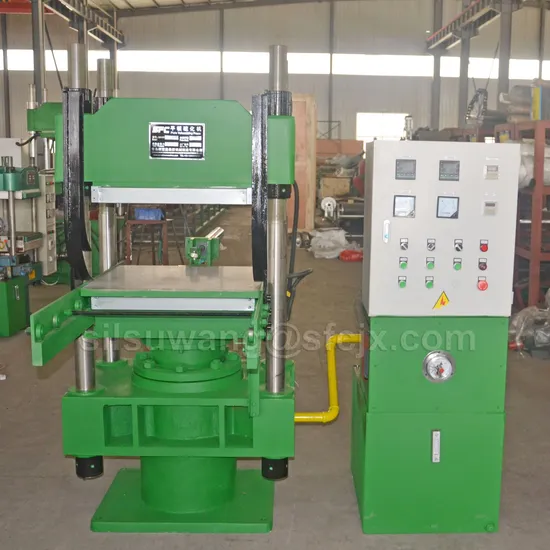

Rubber Vulcanizing Press, Vulcanizing Press XLB-400x400x1
Rubber Vulcanizing Press, Plate Vulcanizing Press, Vulcanizing Press, Hydraulic Rubber Vulcanizing Press, Plate Vulcanizing Machine
Reference Technical Parameters:

Item	XLB240×240×2	XLB350×350×2	XLB400×400×2	XLB500×500×2	XLB600×600×2	XLB700×700×2
Total pressure (MN)	0.15	0.25	0.5	0.63	1.00	1.20
Daylight (mm)	125	125	125	125125	125	200
Platen Layers	2	2	2	2	2-4	2
Unit area pressure of hot plate(Mpa)	2.60	2.04	3.13	2.52	2.77	2.45
Piston stroke (mm)	250	250	250	250	250	250
Heating mode	Electric	Electric	Electric	Electric	Electric	Electric
Main motor power (KW)	2.2	2.2	2.2	2.2	2.2	2.2
Size: L × W × H (mm)	1200×350×1300	1400×480×1380	1600×500×1480	1750×600×1540	1880×720×1680	2000×850×1750
Frame form	Post	Post	Post	Post	Post	Post

The presses is non-standard which can be designed according to your requirements.
Lightspot:
1. 20 years on rubber vulcanizing press manufacturing and exporting.
2. Delivery within 30 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao Shun Cheong
7. This Rubber Vulcanizing Press is used to manufacture the special seal rings in petroleum mechanical.
8. PLC control Method.
9. Customers can choose according to their needs.
10. The new design concept, strong technical force and advanced manufacturing processes of the company ensure that each rubber vulcanizing press can be manufactured to meet customer's individual requests.
11. CE, SGS, ISO9001: 2008 certification.
12. The press has two electrical platens (one working layer)
13. PLC control, high production efficiency
14. Height from floor to underside of top heated platen according to clients requirements design.
15. Daylight when press open according to clients requirements design.
16. Independent control panel.
17. Competitive price
18. Hot plates made of HT200, surface by surface grinding processing, plate face to face parallelism accuracy ± 0.05mm, finish is 1.0μ M.
19. The wires are connected machines, as long as the power supply is connected, the machines can work.
In addition, our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
Our Services Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.In the process of production, we will take photos and send to customers for their track the progress.Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.We supply overseas engineer service and help to train your workers to operate the machine. FAQ 1. Delivery time of the rubber machines?This is specially designed machine according to your specific requirement. From engineer designing to production completion, it needs about 25 to 35 days. 2. What does your factory do regarding quality control? We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment. 3. What's the machine quality guarantee?Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition. 4. Are you able to give installation and commissioning overseas? How long time will it take?Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big plant usually takes about 30 days. 5. How can I trust you to deliver the right machine as I ordered?We will absolutely deliver a good quality machine as we discussed and confirmed in the order.The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us. 6. How can we go to your side?We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.We will pick up you at the airport. Packaging Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.There are 15 experienced engineers and 108 skilled workers in our company, guaranteeing delivery on time as stipulated in the contract. At the same time, the company established a long-term cooperative relation with cosco, for ensuring the goods arriving port on time
.

---
