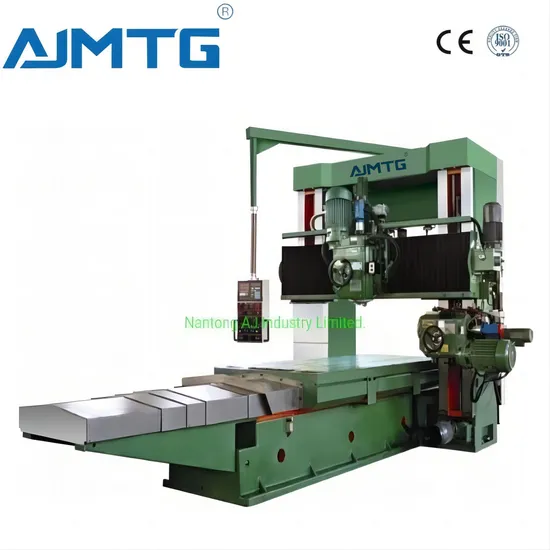

Planer Gantray Type Graphite Milling Machine Gmt3008

US$30,000.00
1 Set
US$27,000.00
2-4 Set
US$12,000.00
5+ Set

Basic Info.

Model NO.
GMT3008
Type
Planer type Milling Machine
Object
Metal
Structure
Gantry
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Electrical
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Metal Box
Specification
HT300 cast iron
Trademark
AJMTG
Origin
China
HS Code
84571030
Production Capacity
200 Set Per Year

Product Description


Hello freinds,Quality, reasonable price and good service, welcome consulting, ordering!
Planer type miling machine
Specificaitons of This Series
X2010 X2012 X2014 Gantry milling machine with 2 heads 1 vertical milling head, 1 horizontal milling head
Specification
 Unit
 X2010
 X2012
 X2014
Max. travel
 Length
 mm
 2000/3000/4000
Width
 mm
 1300
 1400
 1800
Height
 mm
 1000
 1000/1200
Distance between columns
 mm
 1440
 1600
 1920
Table size
 Length
 mm
 2000/3000/4000
Width
 mm
 1000
 1250
 1400
Table feeding speed
 feed
 mm/min
 20-360
 25-450
rapid travel
 mm/min
 1050
 1300
Spindle taper
7:24, ISO50
Spindle speed step
 r/min
 6 steps 82-505
Spindle swivel angle
±35°
Feed rate of milling head
 mm
 Along the cross rail:65/320/890Side milling head:50/265/730
Power of spindle motor
 kw
 7.5
Power of table motor
 kw
 4/5.5/7.5
 5.5/7.5(3000/4000)
Overall size
 Length
 mm
 4550/7000/9000
 5000/7000/9000
Width
 mm
 3200
 3550
Height
 mm
 2550
 2950/3150


X2008 Gantry milling machine with 1 vertical milling head
ITEM
 UNIT
 X2008
table size
 mm
 2000*800
 3000*800
T-slots (No./width/pitch)

5/22/160
max travel of table
mm
 2000
 3000
max width of workpiece allowed
mm
 1100
max height of workpiece allowed
mm
 800
spindle taper
7:24 ISO50
spindle speed
rpm
 82-505 (6 speeds)
spindle box swivel angle

±35°
spindle box vertical travel
mm
 350
table feed speed -X axis
 mm/min
 0-1400 (stepless)
spindle box feed speed (along beam) -Y axis
mm/min
 65/320/890 (3 speeds)
beam move speed (vertical) -Z axis
mm/min
 429
max vertical torque
N.m
 790
spindle motor power
kw
 7.5
table motor power
kw
 4
max load
kg
 2000
machine overall size
mm
 4000*3000*2450
 6000*3000*2450
machine N.W.
kg
 5400
 6100
