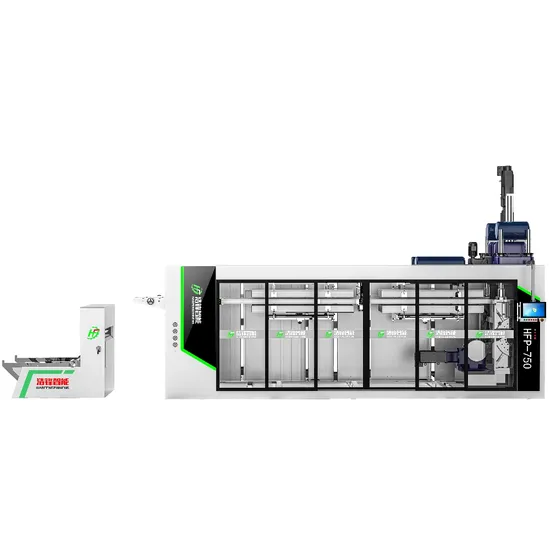

Manufacturers Produce and Process High-Speed and Fully Automatic Cup Forming Machines

Product Description

Detailed Photos
Product Parameters

Max formed area	785x585mm	Control system	PLC(DELTA / YASKAWA)
Cutting force	660KN	Servo motor	DELTA / YASKAWVA
Running speed	45 Cycles/min	Main electrical component	Schneider
Sheet thickness	0.3-3 mm	Main solenoid valve	MAC
Stretching height	200 mm	Max, sheet width	810 mm
Max. tool welght	700 kg	Max. tool weight bottom	600 Kg
Stretching servo power	22 kw	Main Servo power	22 kw
Heating element	Trlmble /Elsteln (HTS)	Temperature controller	Azbil
Dimension(L*W*H)	9,2mx3.05mx4.2m(Unreeling&Forming)3.8mx3,3mx3,55m(Stacking)

Model/Parts	SEPF-585*785 SEPF-320*680
PLC	Delta	Yaskawa
Temperature Control System	Japan Yamatake
Servo motor	Delta	Yaskawa
Electrical components	Schneider
Main solenoid valve	MAC
Main reducer	Planetary

1. Military enterprises use imported CNC machining machines to process imported three coordinate detection, with high machining accuracy, good material selection, important components that have undergone heat treatment, and meet military quality standards.
2. Reasonable design, high wheel axle, small wheel radius, and smoother wheel rotation.
3. Large cam, large swing arm, large shaft pin, and large bearing. The base is made of castings, and the upper mold table is very heavy. The mold table part weighs 15 tons and is pulled by a large horse, running smoothly without shaking.
4. The heating furnace is 16 bricks long. In the same industry, it is usually 12 bricks, nearly one meter long. The Japanese Yamashu thermostat is used for easier and more stable temperature regulation.
5. Planetary ball screws are used for stretching, and their strength and durability are much better than ball screws.
6. The tension beam is fixed and tightened at the front, rear, and middle positions, solving the problem of deformation of existing equipment tension beams in the market. The tensioning is controlled by a servo motor, which is more convenient to operate compared to the conventional motors and oil cylinders used in existing equipment on the market.
7. The lifting of the upper mold table is controlled by a servo motor, which is beneficial for the rapid increase of cutting force.
8. The machine can be made into a suitable machine based on the customer's existing molds Company Profile
Hao Feng company is a high-tech enterprise, located in National EconomicDevelopment Zone-- Ziya Industrial Zone,Tianjin, china, which is a quite con-venient transportation and beautiful environment city, Hao Feng has a generalinvest.ment of 50,000,000RMB, a plant area of nearly 10000 square meters,and more than 60 employees including over 10technicians. its predecessor isBeiling Xiongwei jingfa Machinery Processing Co., LTD., has been operatingfor 16 years.Haofeng always adheres to the principle of quality first, leadingtechnology and excellent service, and continues todevelop and grow. t has richexperience in military products processing, and also design and produce preci-sion automat.ic production lines, fixtures and warehouse handling equipmentfor well-known enterprises such as Bosch, AVL and Z
The main products in-clude: Multi-station Thermoforming machine, cup making machine, CrushingMachine, automatc production wne, and other thermotormind customized orod-ucts, Hao Fend controls allthe orocessind orecision oeach part strictly, so as to ensure the stability of the equipment.The companyhas abundant financial resources and advanced equipment, including numeri-cal control center,CNcmachine , miling and boring machine, three coordinatedetection, laser cutting and surface spraying.Hao Feng has been engaged inproduct research and development, manufacture, sales and after-sales ser-vice, andlong-term commited to the professional development and the devel-opment of automation equipment, providingcustomers with high reliability, effi-cient high-quality products, and cooperation with enterprises to join hands increatinga better future!
Production workshop:
Certifications
Exhibition
FAQ
1 Q: Are you a factory or trading company?
A: We are a factory.
2 Q: How much production capacity of your company one year?
A: This depends on your needs.
3.Q: Can we visit your machine operation in your factory?
A: We have own plastic products company, you can see all the machineoperation.
4.Q:What's the warranty of your machines?
A:12 months Warranty, Life-long technical support
5.Q: How do you help with the installation?
A: Engineer is available to serve over sea if needed. lt is easy for cus-tomer to install through video calling. What's more, wehave video tutorial for customers.
6.Q:Can we test our own material by your machine before order?
A: Yes, please contact us to send your material. We will test and sendvideo to you.

---
