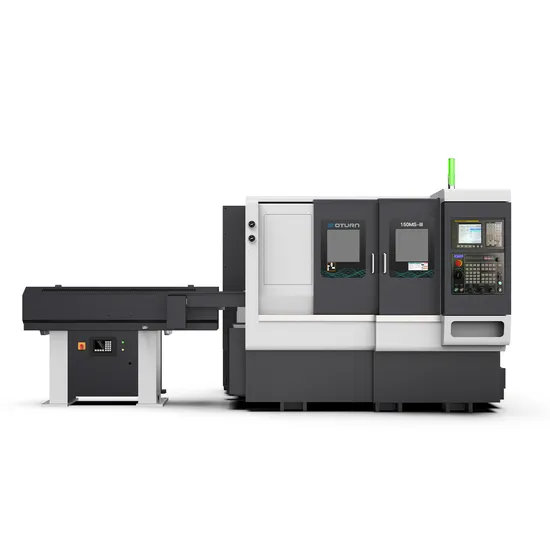

Oturncnc Horizontal Slant CNC Lathe Machine Double Turret Lathe with Fanuc/Siemens

US$28,500.00-182,000.00 1 Set (MOQ)

Basic Info.

Model NO.
TY150MS-III
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Control System
Fanuc, Siemens, Mitsubishi
Spindle
A2-6,A2-8,A2-11
Chuck
6,8,10,12inch
Tool Turret
Vdi or Bmt
Motor Power
11,15,18.5,22kw
Transport Package
Plywood Case
Specification
2200x2100x1700
Trademark
Oturn
Origin
China
HS Code
8458110090
Production Capacity
1000/Year

Product Description



Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
Both ends of the workpiece can be processed at the same time in one clamping, which greatly simplifies the manual operation, increases the output and reduces the process. The second spindle is capable of full turning and can express workpieces during machining, reducing cycle times.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate the vibration of spindle, and the deflection accuracy of the nose end is within 0.002mm. Improve the surface finish of the workpiece.
The rear-mounted rotor is used to facilitate installation and maintenance.
The spindle motor is equipped with cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle. The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finishproduct.
2.High rigidity integral servo power turret. With rapid and precise tool change performance. The tool holder installation used high-rigidity BMT interface, and the power transmission shaft is driven by servo spindle motor.
3.The machine is equipped with THK linear guide rail and ball screw. The heat-treated and precision-ground ball screw can ensure the best precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. High rigidity, large size, and heavy-duty linear slide rails can keep the accuracy of the machine unaffected when it is impacted, the displacement is smooth and the noise is low, which can prolong the service life.
4.Standard configuration FANUC system, and the feed drive adopts FANUC servo motor.
5.Perfect hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components, greatly reducing the failure rate. The design of the hydraulic and lubrication system is simple and reliable.
6.Using Taiwan rotary chuck, oil cylinder and automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. Special fixture.
Product Parameters
Item Unit 150MS-III
Max. swing diameter over bed mm Ф380
Max. processing diameter mm Ф100
Max. processing diameter
Over tool holder
mm Ф160
Max. processing length mm 150
Spindle nose type A2-5
Max. speed of spindle rpm 5500
Oil cylinder/Chuck " 6
Spindle bore diameter mm Ф56
Bar diameter mm Ф45
Direct drive spindle motor power kw 17.5
Spindle torque N.m 62-125
Sub spindle nose type A2-4
Max. speed of Sub spindle rpm 6000
Oil cylinder/collect " 5
Sub spindle bore diameter mm Ф46
Bar diameter mm Ф32
Direct drive sub spindle motor power kw 11
Sub spindle torque N.m 27-66
X1/Z1 motor power kw 1.8/1.2
X2/Z2 motor power kw 1.2/1.2
X1/Z1 travel mm 135/370
X2/Z2 travel mm 215/400
X1/Z1/X2/Z2 fast moving m/min 30/30/30
Positioning accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003
X1/Z1 slide rail type / Roller 35/35
X2/Z2 slide rail type / Roller 30/30
Upper power turret type / BMT45-12T
Upper power turret motor Kw/N.m 2.2/26
Max. speed of upper power turret rpm 6000 ER20
Specification of outer diameter tool holder mm 20x20
Specification of inner diameter tool holder mm Ф32
Adjacent tool change time sec 0.15
Lower power turret type / BMT40-8T
Lower power turret motor Kw/N.m 2.2/26
Max. speed of lower power turret rpm 6000 ER20
Max. speed of lower power turret mm 20x20
Specification of outer diameter tool holder mm Ф25
Specification of inner diameter tool holder sec 0.15
Machine dimension m 2.2x2.1x1.7
Machine weight kg 3500
Cutting fluid tank volume L 180
Hydraulic unit box volume L 40
Hydraulic pump motor power kw 1.5
Lubricant oil tank volume L 2
Automatic lubrication pump motor power W 50
Cooling water pump power W 750
