1 Dds-19L DIN Rail Single Phase Two Wire Kwh Meter

Product Description

DDS-19 DIN Rail Kwh Meter 40A
DDS-19L Information
Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.
TYNEHAM(TAINIHAN) have a complete range of DIN-mounted electricity meters for different applications, the meters are quick and easy to install due to their DIN-rail mounting.
It is highly accurate, durable, reliable, lower power consumptive, Creep proof and strong overloading capability. It according to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21.
DDSY-19L Specifications

1	Type	DDS-19L LCD Display
2	Accuracy	Class 1
3	Rated Voltage (Un)	220V/240v Or Other
4	Base Current (lb)	5A, 10A or other
5	Max Current (Imax)	20A, 40A, 60A, 80A or other
6	Frequency (Hz)	50Hz Or 60Hz (±5%)
7	Starting Current (mA)	0.4% Ib
8	Power Consumption of Current	≤2W
9	IP Class	IP51
10	AC Voltage Withstand	2KV for 1 Minute
11	Impulse Output Rate (Imp/kWh)	3200, 2000, 1600, 800,400
12	Operating Temperature	-20ºC To +55ºC
13	Storing Temperature	-40ºC To +70ºC
14	Operating Humidity	≤75%
15	Storing Humidity	≤95%

DDS-19L Function in Display and monitoring
kWh 6+1
DDS-19L Dimensions
DDS-19L Diagram

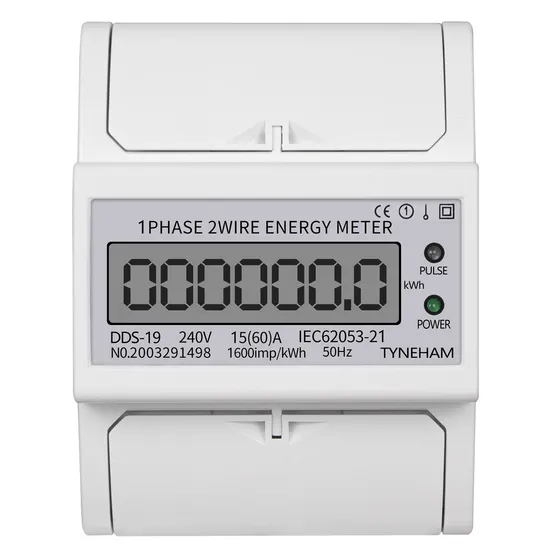

DDS-19L Front Side Photo
DDS-19L Left Side Photo
DDS-19L Back Side Photo
DDS-19L Right Side Photo
DDS-19L Top Side Photo
DDS-19L Bottom Side Photo
