Construction Machinery Hzs90g 90m³ /H Mobile Concrete Batching Plant -Mixing Plant Concrete Plant

Product Description

Product Description

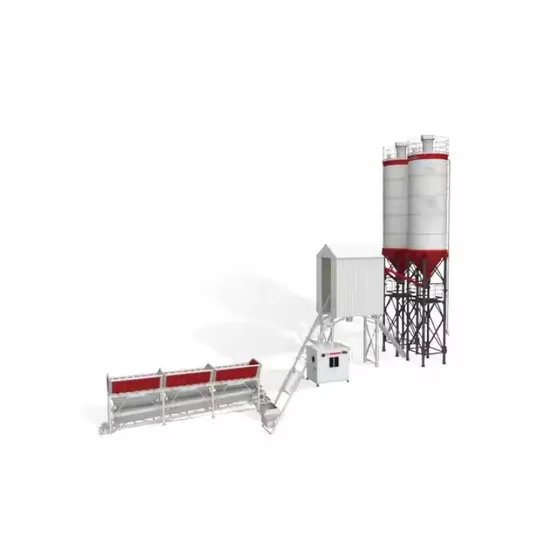

Construction Machinery HZS90G 90m³ /H Mobile Concrete Batching Plant -Mixing Plant Concrete Plant
1.Product introduction:
Stationary concrete batching plant is more suitable for those projects that need to long construction period and don't need to move machine frequently. Therefore, if you have a project that require the production of a lots of concrete at the construction site, our stationary concrete batching plant is a good choice for you. lt can help you produce a large amount of concrete in a very short time. Moreover, because the concrete that it produces has features of high quality, stationary concrete batching plant is mostly used to produce commercial concrete. In general, stationary concrete batching plant is used to mix all kinds of ingredients that make up concrete. lt usually can be used for the construction of roads.airports, high buildings, bridges, railway, highway and so on.
2.Advantages of Our Concrete Mixing Plant:
*.It adopts combined structure and unitized module, which is short, quick and very convenient for installation and demolition.
*.Increase the unloading angle of the aggregate bin to solve the problem of unloading difficulties caused by rain.
*.It is convenient and quick to use the cylinder discharge or electric push rod to discharge.
*.The overall steel structure of the mixing station is made of high-quality steel, which has high overall structural strength and strong stability.
*.The mixing machine adopts the twin-shaft forced mixing main machine, which has strong mixing performance, uniform mixing and high productivity.
*.Excellent pneumatic components, electrical components, etc.; to ensure the reliability of the equipment, accurate metering performance.
*.Each maintenance and repair site is provided with a walking platform or a check ladder, and has sufficient operation space. Easy maintenance and repair.
8.Environmental protection and energy saving, using pulse dust removal, recycling waste-water for reuse. Product Parameters
Concrete Batching Plant

HZS90G
Aggregate Capacity: 3×10 m³
Nominal Capacity of Mixer: 1500 L
Theoretical Productivity: 90 m³/h

Whole station part	Model	HZS25	HZS60	HZS75	HZS90	HZS120
	Theoretical productivity (m³/h)	25	60	75	90	120
	Standard discharge height (m)	1.5-3.8	3.8	2.7-3.8	3.8	4
	Working cycle time (s)	72	60	72	60	60
	Overall dimensions (mm) (length x width x height)	11693x13060x17245	36500x11300x20400	15950x18840x17245	51093x19100x21600	55885x20200x21600
	Total installed capacity (kw)	50.25	105	120	145	210
Mixer part	Model	JS500	JS1000	JS1500	JS1500	JS2000
Batch machine part	Model	PLD1200	PLD1600 Pneumatic weighing machine	PLD2400	PLD2400	PLD3200
Pneumatic system	Air compressor model	1.0-7	1.5-7	1.0-7	1.8-7	1.8-7
	Rated exhaust volume (m³/min)	1.67	1.67	1.85	1.67	1.67
	Rated exhaust pressure (MPa)	0.8	0.8	0.8	0.8	0.8
	Motor power (KW)	5.5	7.5	11	11	15
Weighing system	Sand and gravel metering accuracy range (kg) accuracy	+_2%	+_2%	+_2%	+_2%	+_2%
	Cement metering accuracy range (kg) accuracy	+_1%+_1%	+_1%	+_1%	+_1%	+_1%
	Water metering accuracy range (kg) accuracy	+_1%	+_1%	+_1%	+_1%	+_1%
