| Negotiable | 1 Set (MOQ) |
| Characters |

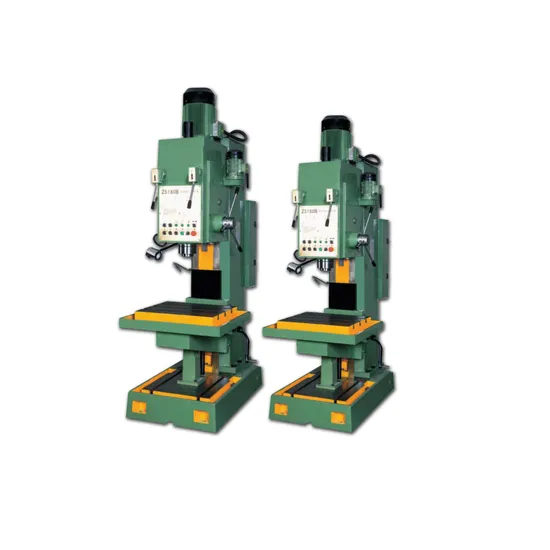

| Square-column vertlcal drilling machine is a universal general-purpose machine. Its used for counter-sinking, spot-facing drilling,tapping, boring, reaming, etc. The machlne nas catch the flnction of tap-automatically reversing device which is sulfable for tappng of blind and determined holes. The machine has high effciency,high accuracy. low noise. wide range of variable speed. centralized controls good looking appearance, easy maintenance and operation. |
| Model | Z5140A/Z5150A | Z5140B/Z5150B | Z5163B | Z5180B |
| Max.drilling capacity | 40/50mm | 40/50mm | 63mm | 80mm |
| Max.feed resistance | 16000n | 30000n | 30000n | |
| Max. permissible spindle torque | 350N·m | 800N·m | 800N·m | |
| power of main motor | 3/4kw | 3/4kw | 5.5kw | 7.5kw |
| Throat distance | 335mm | 375mm | 375mm | |
| Spindle taper | MT4/MT5 | MT4/MT5 | MT5 | MT6 |
| Spindle travel | 250mm | 250mm | 250mm | |
| Spindle box travel(manual) | 200mm | 250mm | 250mm | |
| Spindle speeds range(steps) | 31.5-1400(12)r/min | 40-570(9)r/min | 40-570(9)r/min | |
| Feed rates(steps) | 0.056-1.80(9)mm/rev | 0.1-0.78(6)mm/rev | 0.1-0.78(6)mm/rev | |
| Max. travel of table | 300mm | 300mm | 300mm | |
| Working surface of worktable | 560×480mm | 650×550mm | 650×550mm | |
| Max.distance from spindle nose to worktable surface | 780/740mm | 830mm | 800mm | 800mm |
| Overall dimensions(l×w×h) | 1090×905×2535mm | 965×1452×2787mm | 965×1452×2787mm | |
| Net weight of machine/gross weight | 1250/1190kg | 1850/1935kg | 1850/1935kg | |
| Packing dimension(l×w×h) | 122X80X248cm or 122X80x224cm | 150×92×280cm or 275×101×179cm | ||
