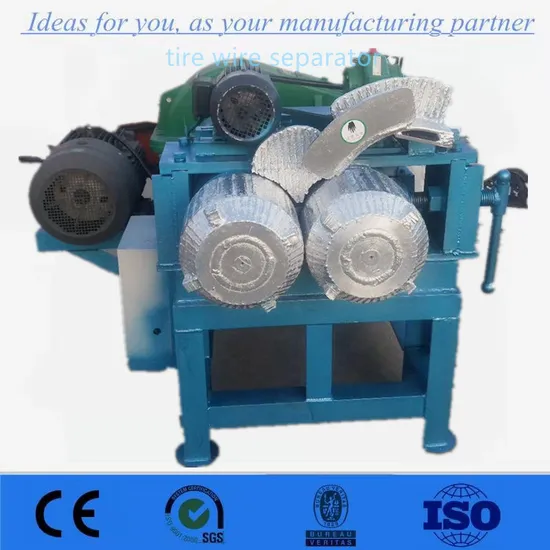

Tire Recycling Steel Wire Remover Separator /Bead Wire Separator

Product Description

Product Description
Main parameters:

bead steel wire separator/ Rubber recycling machine 1.Applications: It is utilized to separate rubber and steel wire of bead in order to get whole steel wire. 2.Features: It is easy operated, easy to be installed and maintained, high efficiency and clean etc. 3.Main technical spec.: 1.Production capacity 65Pcs/h 2.Motor power 18.5KW 3.Motor rotating speed 1440R/Min 4.Speed reducer model 450 5.Speed ratio 40.17 6.Machine weight 1700kgs 7.Overall dimension 1800*1500*1200mm 8.Voltage(V) 380 9.Frequency(Hz) 50

4.Delivery time: 10 days
packing: suit for long time sea transport.
5. Process:
waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)
1. Ring cutter
This machine mainly used to cut the sidewall of steel wire tire, and then to the next step of segmentation. First, put the tire on the platform, then rotate the hand wheel, the three claws will stick the inner tire firmly, Second, Starting power, work platform will rotation, cutting tool according to need to cut tire slowly step by step. Until the tire side cut off.
2. Strips cutter
Strips cutting machine can cut cycle machine to remove the wire tire sidewall cut into strips, and the width of the adjustable section. Two circular knives for special materials, hard and durable, can be used repeatedly grinding for no more than 1200 steel tires.
3. Block cutter
Block cutter is designed to cut car, truck and rear tractor tire. Range is up to 120cm truck tires. The tire cutter adds flexibility to your total tire cutting system by providing you the opportunities of accepting tires up to 120cm into your system, The unit also allows your system to cut 60-70 truck tires per hour or 120-150 car tires per hour.
4. Bead wire separation
Be utilized to separate rubber and steel wire of bead in order to get whole steel wire.
Feature: It is easy operation, easy to be installed and maintained high efficiency and clean etc.
5. Tyre crusher
This machine is mainly used to crush waste tire and rubber. The structure is gear transmission.
Structure:
This kind of machine consists of seat, Rack, two rollers, motor, cooling system, heating system etc
1. Rollers are made of chilled cast iron, which are abrasion resistant with long service life.
2. Rear roller is equipped with distance adjustment device, easy operation and convenience, turn the turbine to adjust the distance
3. Perfect emergency stop device can ensure the safety of personnel and equipment.
4. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
5. Human nature designed operating system reduces labor intensity
A load test running will be made to the assembled equipment in our company to save debugging time for customers.
1)Gap adjustment mode:
Manual or auto; Grease or thin oil
2)Lubricating method:
Manual or auto; Grease or thin oil
3)Emergency stop device
Pull rod and emergency button
4)Roller bearings:
Nylon Bushing or Copper Sleeve or Spherical Roller Bearing
If you are interested the products, please contact me, I will try my best to tell you the details. Looking forward to your reply.

Equipment name		Quantity	Equipment specifications and function is introduced
Main machine	Rubber crusher	1	Type: SW-350/SW-400 /SW-450 /SW-560 Scrape tire rubber pieces and miscellaneous glue grinds broken.
For With a set	Steel wire separator	1	1. Make tire side and tire top joint use a knife to slice; 2. Make the side of the tire and tire top complete separation.
	Strips cutter	1	Cut off the side of the tire tire cut into strips, tires circle mouth retained
	Rim cutter	1	Cut into strips of tires, cut into 3.5 centimeters square blocks
	Big vibrating screen	1	Make powder for the first time sorting (8-10 mesh)
	Small vibrating screen	1	Make powder on the second sorting (20-30 mesh)
	Big conveyor	1	Used to transport not reached mesh request return to host continue powder and broken
	Magnetic separation units	1	Make the metal wire powder extraction separation
	Defibering machine	1	Make the fiber extraction MAO powder
	Steel wire separator	1	Make tire of coarse steel mouth circle parts with rubber complete separation.
Remarks			Above unit is in the process of tires used to crush the machine

Company information
100% Real Manufacturer,

Welcome to visit our factory and we can show you the machine in working condition:

If our products win your interest, please send us inquires with detailed requirement and we will provide detailed information to you. We can also make machines according to your request.
