Large Capacity Widely Used Crusher Jaw with Low Price and High Efficiency

Product Description

ELECTRIC

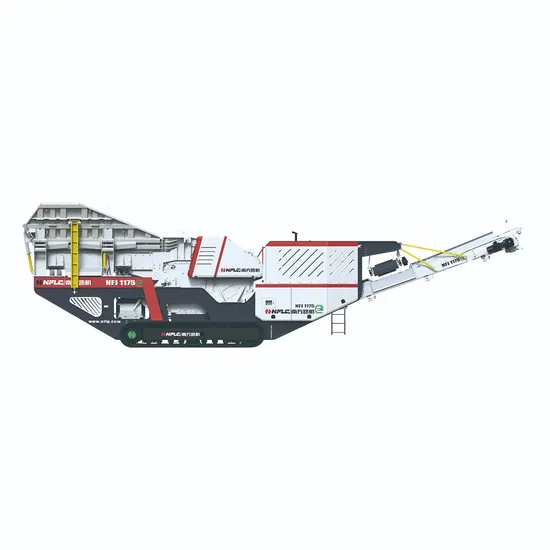

Tracked mobile crushing and screening production line
The tracked mobile electric drive crushing and screening production line in NFLG has made technical adjustment on the basis of the crawler diesel hydraulic version to continue to retain the tracked walking function.The whole machine is operated by electric drive (external electric or external generator set), which is more green, energy-saving, economical and efficient. All equipment share the tracked diesel version of the equipment, retain the core function, continue the high stability of the tracked diesel version of the equipment, to bring more choices for customers and higher business competitiveness. Product Description
Product Parameters

Model	Crusher &screen	Throughput(mtph)	Maximum feeding size(mm)	Total power(kW)	Power of engine(kW)	Working state dimension(m)	Transportation dimension(m)	Weight(t)
NFJ1175E	JW1175	475	650	160	129	15.8×3.5×4	15.8×3×3.8	50 standard configuration
NFC1300RSE	HC1300	390	220	339	129	20.5×3.8×5.2	20.5×3.5×3.75	63.5 standard configuration
NFI200RSE	IH1213	450	700	295	129	21.7×3.8×5	20.3×3.6×3.8	67 standard configuration
NFS360E	3NYK2060	500	100	67.5	129	16×21×7.1	18×3.7×3.6	34 standard configuration

Detailed Photos
Company Profile
After Sales Service
FAQ
1 : Are you original manufacture?
A:Yes. we are NFLG, an official leading manufacture in construction machinery in China.
Core products cover:
A. Asphalt Mixing, Concrete Mixing and Dry Mortar Mixing (Engineering Mixing);
B. Mobile Crusher & Screen, Stationary Crusher & Screen and Sand Making and Shaping Equipment (Materials Processing);
C. Construction Waste Processing Solution, Waste Sludge & Soil Recycling Solution and Decoration Waste Processing Solution(Construction Waste Processing).
2:What kind of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
4:What about the delivery time?
A:45 days after receving the deposit.
5:What about the warranty time?
A:12 months after shipment.
6.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.

---
