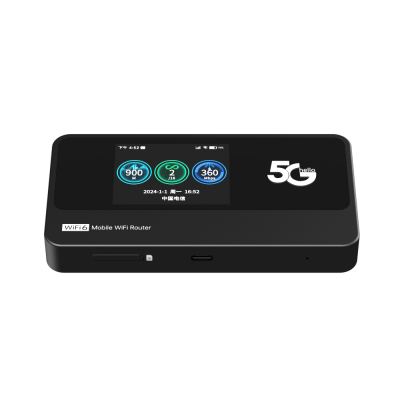

| Description | 2.4' TFT LCD touch panel Wifi 6 portable 5g router |
| Item no. | HY8353 |
| Chipset | MTK 900，MT6877，6nm 2*A78（2.4GHz）+6*A55（2.0GHz) GPU：Mali OTR MC4 |
| Memory | LPDDR4X 2GB RAM+EMMC 32GB ROM |
| Wifi | MT6635 |
| Bluetooth | Bluetooth 5.1, Optional |
| LCD | 2.4‘ TFT MIPI (LCD or LED) |
| Touch Panel | Support |
| LED | Red, Green, Blue |
| Protocol | 3GPP Rel. 15, 5G NR, SA/NSA, Sub 6G/LTE Category 18 |
| Bands | 5G：n1/n3/n5/n7/n8/n20/n28/n40/n41/n77/n78/n79 4G：B1/B3/B5/B7/B8/B20/B28/B34/B38//B39/B40/B41 Frequency can be customized |
| Throughput | NR：Downlink/Uplink up to 2.77Gbps/1.25Gbps LTE：Downlink/Uplink up to 1.2Gbps/150Mbps WCDMA：Downlink/Uplink up to 42.2Mbps/11.5Mbps |
| Antenna | 4*4 MIMO |
| Wifi bands | 2.4G, 5.8G DBSC(2*2), DBDC(1*1) |
| Wifi protocol | 802.11 a/b/g/n/ac/ax |
| Wifi throughput | 802.11a：Up to 54Mbps 802.11b：Up to 11Mbps 802.11g：Up to 54Mbps 802.11n：Up to 300Mbps 802.11ac:Up to 866Mbps 802.11ax:Up to 1201Mbps |
| Wifi antenna | 2*2 |
| Users | 16 |
| SIM card | single SIM card, hot plugging supported NANO SIM card ，eSIM optional |
| USB | TYPE-C (USB 2.0) |
| Button | 1*Power, 1*Reset |
| Type-C | 5V/2.0A |
| Polymer battery | 4400 mAh, could be customized |
| Home | Network Status |
| Connected Devices | |
| Power Display | |
| Signal Strength | |
| Manager | APN Setting |
| WLAN Setting (Frequency Band/MAC/DHCP/Password) | |
| Device Management (MAC/IP) | |
| Traffic Management | |
| System | Device Information |
| Device Restart | |
| Password | |
| Reset | |
| Operating Environment | Operating Temperature:Normal:0°C to +45°C; Operating Humidity:-20° C to +70° C Operating Humidity:5%~ 95% Storage Humidity:5%~ 95% |
| Dimension | Device: 310*230*41mm CTN size: 48.8*43.8*33.5 CM, 20pc/ctn G.W.: 11.72 KGS |
