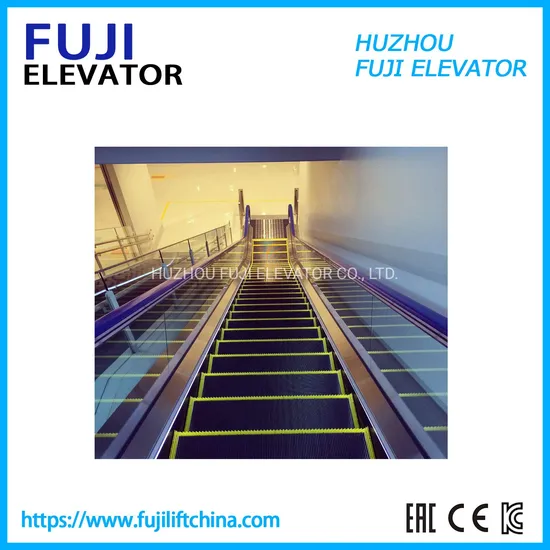

FUJI China Factory Moving Wall Escalator with High Quality Modern Design Automatic Start Mechanical for Shopping Mall

Product Description

About Good Quality Modern Design Automatic Mechanical Escalator for Center
The escalator is a combination of a special structure type chain conveyor and two special structure type belt conveyors, with circular moving stairway, which is used to carry passengers upward or downward between different levels of the building. A continuous conveyance mechanism for carrying people up and down.
It can be widely used in stations, terminals, shopping malls, airports and places where
people are concentrated.
30° Escalator Parameter

Model	Travelling height(mm)	Net weight KN	Supporting		Transport size
			R1KN	R2KN	H	I
(3600pers/h) Speed:0.5m/s	3000	57	46	41	2750	10900
	3500	60	49	44	2780	11890
	4000	64	52	47	2810	12880
	4500	68	56	50	2830	13870
	5000	71	59	53	2840	14860
	5500	75	62	56	2860	15860
	6000	79	65	59	2870	16860
(4800pers/h) Speed:0.5m/s	3000	59	49	47	2750	10900
	3500	63	52	50	2780	11890
	4000	67	56	54	2810	12880
	4500	71	64	57	2830	13870
	5000	74	68	60	2840	14860
	5500	82	71	66	2860	15860
	6000	86	78	69	2870	16860
(6000pers/h) Speed:0.5m/s	3000	63	59	53	2750	10900
	3500	67	64	57	2780	11890
	4000	71	68	61	2810	12880
	4500	75	73	65	2830	13870
	5000	83	79	71	2840	14860
	5500	87	84	75	2860	15860
	6000	92	88	79	2870	16860

35° Escalator Parameter

Model	Travelling height(mm)	Net weight KN	Supporting		Transport size
			R1KN	R2KN	H	I
(3600pers/h) Speed:0.5m/s	3000	54	43	39	2850	10180
	3500	57	46	41	2890	11030
	4000	60	49	44	2920	11890
	4500	64	52	46	2940	12750
	5000	67	54	49	2970	13610
	5500	70	57	51	2980	14470
	6000	73	60	54	3000	15330
(4800pers/h) Speed:0.5m/s	3000	56	49	44	2850	10180
	3500	60	52	47	2890	11030
	4000	63	56	50	2920	11890
	4500	66	59	53	2940	12750
	5000	70	62	56	2970	13610
	5500	73	65	59	2980	14470
	6000	76	69	61	3000	15330
(6000pers/h) Speed:0.5m/s	3000	60	56	50	2850	10180
	3500	64	60	53	2890	11030
	4000	67	64	57	2920	11890
	4500	71	67	60	2940	12750
	5000	74	71	64	2970	13610
	5500	82	77	69	2980	14470
	6000	85	81	72	3000	15330

Generalized parameters

Installation Environment:	Indoor and Outdoor
Layout	According to Construction plans
Travel Height	H≤20000mm
Step width (mm)	600, 800, 1000, 1200
Up-down horizontal step	2/2(35°) , 3/3(30°)
Angle of inclination	35°, 30°
Operating speed	0.5m/s,1.0m/s
Start method	VVVF , VVVF+Autostart
Step	Stainless steel, Aluminum (standard for outdoor)
Color	Natural color, Black
Capacity (persons/h)	4500, 6700, 9000
Step cordon	Yellow paint
Driver Traction machine	Worm And Gear
Motor protection level	IP 21, IP54
Power Supply	Motor Power: 380V±7%, 50Hz Three Phase Five Wire System Lighting Power: 220V, 50Hz, Single Phase
Truss	Angle
Installation length	Standard
Truss process	Paint process(colour TK005),Hot-dip Galvanizing

Standard configuration
Instruction
1.when the escalator is installed on the two floor above the pit,cancel,cicil substructure and upper symmetry.
2.in the escalator entry and exit,there should be a full open area,the width is not less than 1238,the depth from the handrail to the front obstacle is not less than 2500.
3.escalator handrail to any obstacle is not less than 500.
4.motor AC380V 50HZ,motor power ee table.
5.a resistor less than 4 ohm grounding device is provided by the user.
6.the power suplly from the user to the escalator main switch requires three phases,five lines(soft wire).
7.all dimensions are millimeter,if there is any change,no notice will be given.
Use of safety hairbrush for escalators:
Used in major markets, shopping malls or subway entrances, installed on both sides of the lower part of the escalator, to prevent potential safety hazards caused by tying objects or shoelaces between the escalator steps and the side panels of the skirt.
Escalator clamping device:
1. Increase the position of the safety brush in conformity with the requirements of national standards and other positions such as steps.
2. The bending is treated as same as the radian of the side board. And ensure that the distance with the steps meet the requirements of national standards.
3. Gently process the ends of each brush. Add brush stop.
4. Ensure sufficient strength during installation, and the total length of the brush top and the side board of escalator meets the standards.
5. The base of the brush and the brush shall meet the standard inclination.
About us
Huzhou fuji elevator company adheres to the advanced international elevator management mode and innovative fruits in technical field.It actively introduces the first-class elevator manufacture equipment.It establishes the perfect and superior product system.It takes the management ideas of "since,creditable,promise-keeping,cooperation and double-win".it is engaged in sci-tech innovation.
It owns multiple original core technologies.At present,the products cover passenger elevator(small machine room,traction type villa elevator),freight elevator.automobile elevator,escalator,moving walk series etc.According to the user's requirements, it executes the market operation mode which integrates the manufacture,sales,installation,repair and maintenance into one.It design and produces different kinds of plural elevators as per the user's actual.

---
