Customized Aluminum Steel Profile Roll Forming Machine

Product Description

Product Description

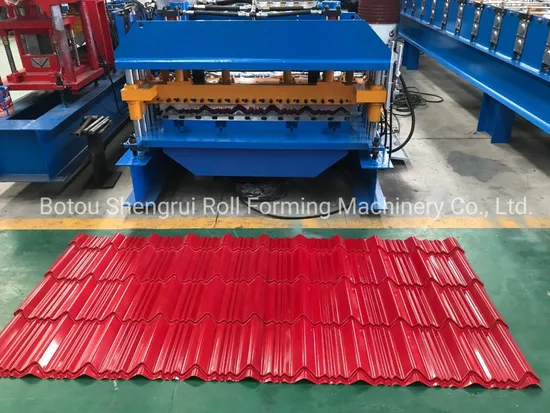

Q Tile Roll Forming Machine
The Roll Forming Machine is composed of feeding, forming, and post-forming cutting. The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.
Product Parameters

Roofing Sheets Roll Forming Machine(Roll Forming,Roll Former ,Steel Sheet Metal Machine)
No.	Item	Specifications
1	Coil Width	1000mm
2	Diameter of shaft	70mm
3	Forming Speed	8-12meters/min
4	Middle plate	16mm
5	Material of shaft	45#steel with tempering
6	forming thickness	0.2mm-0.6mm
7	material of rollers	45#steel
8	Cutting type	hydraulic -cutting
9	Main power	4kw+3kw
10	Main frame	300H steel
11	Control system	PLC
12	Brand of electrical parts	Delta
13	Manual decoiler	5 tons
14	Power	3 Phase,380 Voltage,50Hz
15	Dimensions(L*W*H)	About 6.5*1.2*1.2M
16	Weight	about 3 tons

Packaging & Shipping

workshop

Certifications

Successful Project
FAQ

(1)Are you manufacture or factory ?
we are manufacture and we have more than 10 years'experience.
(2)what's your guaranty of machines?and how to make sure quality of machines?
Guaranty of machines is 12 months.and after finish machines,we will supply video of working machines,also welcome to visit our factory and inspection of machine on site.
(3)Engineer available overseas?
our engineer can go to your place for installation of machines,customers need responsible for round -way flight tickets ,accommodation and engineer's salary is 100usd/day.
(4)if spares broken ,how to deal with it?
we can send new spare to you by DHL courier,about 5 to 7days you can receive them.
(5)what's your payment term?
our payment term is 30% advance payment by T/T,other 70% balance payment before shipment.
5.For more information ,pls contact :

---
