US$10,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
CK6140 CK6150 Ck6160 CK6180 CK61100
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Swing Over Bed
400mm, 460mm, 500mm
Swing Over Cross Slide
180mm, 250mm
Max. Turning Length
750/1000/1500mm
Spindle Speed
100-2000rpm
Transport Package
Plywood Case
Product Description

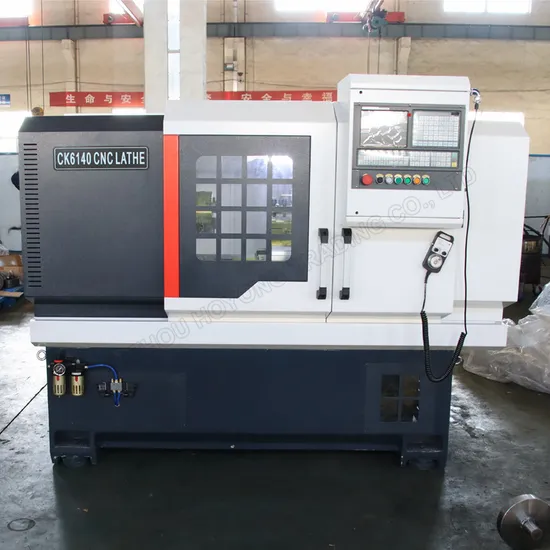

CNC LATHE FEATURES:
STAND AND BED use full casting, good regidity
Bed way 400mm width
Eject splash in middle of bed
3 support in spindle
Box way, linear way for optional
Multi-Numerical control system for optional
SPECIFICATONS:
| MODEL | CK6140 |
| Swing over bed | 500mm |
| Swing over cross slide | 195mm |
| Length of work piece | 600mm |
| Distance between center | 650mm |
| Z-travel | 900mm |
| X-travel | 240mm |
Spindle bore
Taper of spindle bore
Spindle nose
Range of spindle speed | 52mm
(MT6#)
D1-6
200-2200r/min |
Z rapid speed(Box Way)
Z rapid speed(Linear Way) | 8m/min
12m/min |
Z cutting feed(Box Way)
Z cutting feed(Linear Way) | 1~4000mm/min
1~5000mm/min |
X rapid speed(Box Way)
X rapid speed(Linear Way) | 3m/min
10m/min |
X cutting feed(Box Way)
X cutting feed(Linear Way) | 1~2500mm/min
1~3000mm/min |
| Power of main motor | 5.5kw |
| Max. spindle torque | 70Nm |
Repositioning accuracy(Box Way)
Repositioning accuracy(Linear Way) | ±0.006mm
±0.004mm |
| Min. input | 0.001mm |
| Nos. of tool position | 4 |
| Max tool shrank | 20×20mm |
| Tailstock diameter | 60mm |
| Tailstock taper | (MT4#) |
| Tailstock travel | 160mm |
| Power supply | 11kva |
| Overall size(L×W×H) | 210×120×200cm |
| Packing size(L×W×H) | 220×132×222cm |
| Net weight/Gross weight | 1500kg/1600kg |
| STANDARD ACCESSORIES |
Wrenches
Reduction sleeve
Center
Short -Taper Three-Jaw self-Centring Chucks |
| STANDARD PART |
Frequency conversion spindle motor 5.5kw
Max. spindle torque 70Nm
Power supply 11kVA
2-Axis box way
4 position vertical electric turret
Auto lubrication , coolant system
Simple cover
GSK980TA numerical control system |
| OPTIONAL ACCESSORIES |
Frequency conversion spindle motor 7.5kW
Max. spindle torque 95Nm
Power supply 13.5kVA
16 Step headstock gear graduation 45~1800r / min
X axis box way ,Z axis Hiwin linear guide way
2- Axis Hiwin linear guide Way
6 position horizontal electric turret
Gang tool
Full cover
FANUC Oi-mate-TD , Siemens802C , KND100Ti ,HNC-21TD numerical control system
Power Chuck |
>>
