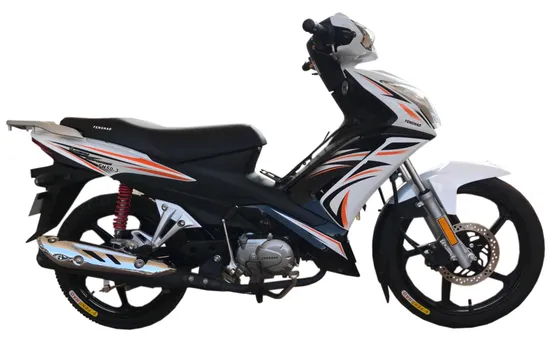

| FH50-3 parameter |
| Serial number | project | unit | technical parameter |
| 1 | Displacement | ml | 106.7 |
| 2 | Stroke | | 4 |
| 3 | Stroke | | 4 |
| 4 | Cooling way | | air cooling |
| 5 | Ignition | | CDI |
| 6 | Cylinder | mm | 1 |
| 7 | Bore*Stroke | | 52.4×49.5 |
| 8 | Express Ratio | | 9.7:01:00 |
| 9 | Max Power | | 5.0/8000±5% |
| 10 | Max Torque | | 6.9/6000±5% |
| 11 | Gear shift pattern | | Four-speed cycle protection |
| 12 | Start | | Electric start |
| 13 | Dimension | mm | 1920*720*1080 |
| 14 | wheelbase | mm | 1245 |
| 16 | Max Load | kg | 150 |
| 17 | Max Speed | km/h | ≥85 |
| 18 | Front Rim | | 1.4×17 |
| 19 | Rear Rim | | 1.6×16 |
| 20 | Front tire | | 2.50-17 |
| 21 | Rear tire | | 80/90-16 |
| 22 | Brake control method | | Front hand brake/rear foot brake |
| 23 | Ground clearance | mm | 140 |
| 24 | Seat height | mm | 760 |
| 25 | Net Weight | kg | 96 |
| 26 | Fuel Tank | L | 4 |
| 27 | Front Shock Absorber | | Dual-sequence hydraulic damping type |
| 28 | Rear Shock Absorber | | Dual-position spring damping |
| 29 | Vehicle color | | white, black, red, blue, silver, grey |
| 30 | Loading QTY(40HQ) | | CKD184/CKD200 |
