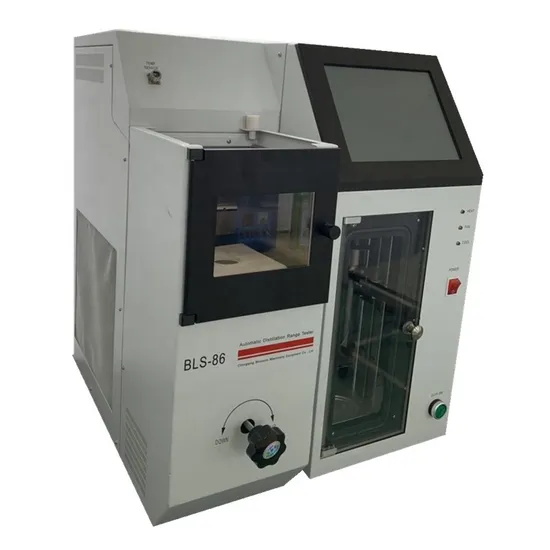

ASTM D86 Automatic Oil Distillation Range Analyzer

Product Description

Product Description ASTM D86 Automatic Oil Distillation Range Analyzer
Application
This is an automatic distillation test instrument for measuring the atmospheric distillation range of petroleum products. It is designed and manufactured under the test method of GB/T 6536 Atmospheric Distillation Characteristics ofPetroleum Products, GB/T 7534 Boiling Range of Industrial Volatile Organic Liquid, ASTM D 86, ASTM D 850, ASTM D 1078 and other standards for distillation test of gasoline, aviation gasoline, jet fuel, special boiling point solvents, naphtha, diesel, distillate fuels and industrial volatile organic liquids, etc. It is the latest developed automatic distillation tester with advanced technology, convenient usage and high cost performance.
Features
1.Instrumentation tests the whole process automatically by the industrial computer, full touch 10.4-inch LCD test, the whole process shows data and correlation curves of the temperature and volume.2. Liquid level tracking system consists of high subdivision step US Haydon brand linear motor and imported photoelectric tracker (Japan KEYENCE).3. Cooling medium inner loop, the first domestic use antifreeze instead of cooling water.4. Can automatically control the distillation heating circuit, and makes the sample flow rate control from the initial distillation point to 95% within 4 ~ 5 ml per minute.5. Can provide initial distillation point temperature and final distillation point temperature value, also can provide temperature and flow rate at percent point.6.Can detect local atmospheric pressure automatically and correct for the temperature at standard atmospheric pressure automatically.7. User can choose to crease the test according to the steam temperature or volume recovered.8. Can store, query and print test results.9. Initial boiling point temperature is detected by the optical fiber sensor.10. With a fire extinguishing system.11. It comes with a safe temperature setting function.12. The instrument can automatically detect and display temperature and velocity time for every 5% volume point.
Detailed Photos
Product Parameters

Temperature control range of cold bath	0-60ºC
Temperature control accuracy of cold bath	±0.5ºC
Temperature control range of receiving room	0-60ºC
Temperature control accuracy of receiving room	±1ºC
Distillation heater	1000W, 24V
Distilled liquid volume detection range	0-100ml, resolution: 0.01ml
Distilled liquid volume measurement accuracy	≤0.1ml
Power supply	AC(220±10%) V, 50Hz
Total power consumption	250W
Ambient environment	Ambient temperature:10-35)ºC; relative humidity ≤ 80%
Dimensions	500×530×660mm(L×W×H)
Host weight	About 85kg
