CNC Hydraulic Press Brake Machine 400t4000 4+1 Axis Metal Bending Machine

Product Description

Products Description ANHUI YAWEI 400T4000 CNC PRESS BRAKE Press brake, also known as a brake press, is a machine tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die.
CNC press brake use for continues and complex working pieces manufacturing, advance in Efficiency. Main features • Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance
• Be capable of be controlled at random point within the stroke
• Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
• Deflection compensation table or crowning system for high precision
• Holland Delem DA53T CNC together with linear scale, Bosch-Rexroth valves, servo motors and other famous brand elements to ensure

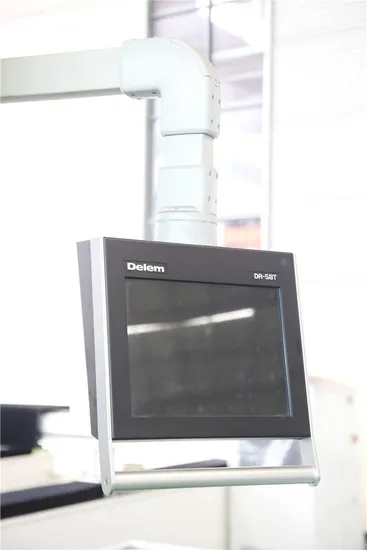

excellent performance Machine Block YWB series cnc press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy. All referance surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time. CNC Backgauge AHYW press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning. DA58T CNC System * 2D graphical touch screen programming
* 15" high resolution colour TFT
* Bend sequence calculation
* Crowning control
* Servo and frequency inverter control
* Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
* USB, peripheral interfacing
* Profile-T offline software Details Images Mechanical Quick Clamps Using mechanical fast clamp for upper dies, changing dies more convenient and safe. 42Crmo Toolings The press brake dies are made by 42Crmo steel, and the temperature of heat treatment up to 42°, ensuring the die service life. KACON Pedal Switch KACON pedal switch from South Korea improving the service life and operational sensitivity. France Schneider Electrics Stable France Schneider electrics, Panasonic Servo drive to improve the positioning accuracy of X, Y axis. Bosch Rexroth Hydraulic System Germany Bosch Rexroth integrated hydraulic valve block. Germany VOITH Oil Pump Using Germany VOITH/HAVE Oil Pump guarantee the oil service life and reduce noise during working. Dual Linear Guide Dual linear guide for CNC Press Brake fingers stops movement. Backgauge Fingers AHYW Z1&Z2 Auto press brake back gauge moving on dual linear guide. Ball Screw & Linear Guide Adopting HIWIN ball screw and linear guide to improve the machine backguage accuracy. OPTIONAL Mechanical Crowning Compensation Italy DSP Laser Guarding System DELEM Controller DA66T With 8+1 Axes Servo Motor Optional Oil Cooler R Axis Backgauge Up and Down Technical Parameters Production Process Company Profile Anhui Yawei Machine Tool Manufacturing Co.,ltd. was founded in 2005, the registered capital is 81.88 million, with 120 employee, floor space about 40000 square meters, the location is close to Nanjing Airport and near to Shanghai city. We specializes in exporting CNC Hydraulic Press Brake Machine, Hydraulic Shearing machine, CNC Fiber Laser Cutting Machine, CNC Robotic Arm, with over 120 different types. Our machines, which adopt advanced technology, have a high quality. The main electrical parts, hydraulic parts and the instrument of our machines are adopted the best products made by the famous manufacturer in the world. We have passed ISO9001 quality system certification and the European Union CE certification, etc., at the same time established a perfect market service system and the system of the mature. Based on the good quality and top technology on our machines, we sell well in various countries and regions over 90 in the world such as U.S.A, Canada, Europe, South American, Middle East, and Southeast Asia market. The history of our independent Import and Export experience is more than 12 years. We also make OEM machines for our European Agent, all of the configuration on the machines will according European standard and approved by customer satisfied. Advanced technologies, scientific management, wonderful products and approving service are kept on which we aim at. We want to cooperate with you to promote our sales and build a long term cooperation with you for future business. Best wishes for you and hope a better tomorrow for all of us! Facilities & Equipment 8m CNC large boring&milling machines 12m Large CNC 5 Axes Machining Center Heat treatment for main frame of Sheet Metal Machinery
Our service Pre-Sales Service Technical and Sales team work * Inquiry and consulting support.
* Suggest solution
* View our Factory. After-Sales Service Engineers and Sales cooperate * Training how to install the machine, and how to use the machine.
* Engineers available to service machinery overseas. FAQ Q1. Are you a factory or a trading company?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than 15 years of manufacturing experience, and our products were exported to more than 90 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. What is your normal lead-time??
A: Lead-time for a routine order would typically be 25-30 days. However, this varies with a number of factors including order size, machine model, workpiece complexity and shop load, to mention a few. Lead times are provided with all quotations. Please advise us if a rush order is required and we can usually accommodate.
Q4. Where are you located? How do I get there?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.

---
