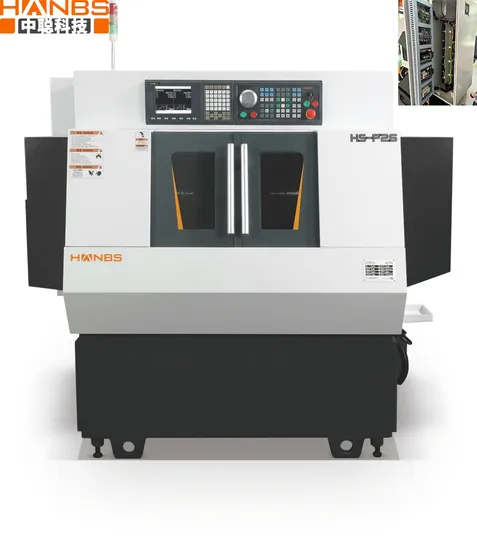

Hanbs Precision and Low Noise CNC Lathe

Product Description

P26- Precision and low noise CNC lathe

Product Description
High precision and repetitive precision:
CNC machine tools can perform extremely precise machining, and their machining errors can be controlled within a very small range. In addition, they can repeat the same operation time and time again, ensuring the consistency of each produced component.
Prossing ability of complex shapes:ce
Traditional machine tools have their limitations in processing complex components, while CNC machine tools can easily process various complex shapes and details. They can perform multi axis linkage to process complex geometric shapes such as curves and slopes.
High efficiency and automation:
CNC machine tools can operate continuously without manual supervision, reducing human errors and the need for manpower, effectively improving productivity. The functions of automatic tool changing and workpiece clamping greatly shorten non processing time.
Flexibility and programmability:
CNC machine tools are controlled by computers and can easily adapt to different production requirements with just programming changes, especially suitable for customization and small batch production.
Improving working conditions:
The application of CNC machine tools reduces the need for manual operation, greatly improves the working environment of operators, and reduces labor intensity.
Product detailed
Product Information

Processing parameters	Maximum processing diameter	φ26mm
	Maximum machining length 2.5D	50mm
	Maximum axial drilling diameter	M10mm
	Maximum axial tapping size	M8
	Max. spindle speed (short time)	10000rpm
	Max. back spindle speed (short time)	12000rpm
	Max. workpiece removal length	40mm
Maximum stroke	X1 axis	375mm
	Z1 axis	180mm
	X2 axis	375mm
	Z2 axis	180mm
Cutting tool	Size of cutter plate	390mm
	Maximum number of tools	8
	Tool (turning tool)	φ16X16
	Sleeve	φ25
	Height from tool plate holder to spindle centre	45mm
Collet	Spindle collet	HB26
	Back spindle chuck	HB26
Feed rate	X1/X2 axis feed rate	15m/min
	Z1/Z2 axis feed speed	15m/min
Motor	Spindle drive power	2.5/3.7KW
	Back-axis drive power	1.5/2.5KW
	X1 X2 Z1 Z2 power	1.1KW
	Cutting oil	0.4KW
Other	Spindle centre height	1010mm
	Air pressure flow	0.7mpa 0.5m3/min
	Main breaker capacity	40A
	Input power	5.4KW
	Weight	2700Kg
	Dimension	1950X1455X1700mm

Processed Product Display

processed material
Factory
Certifications
loading&shipping

Product Uses

The following are four specific application scenarios of CNC Lathe:
New energy vehicles
medical treatment
Communication accessories
Household appliances
Electronic cigarette
Precision component processing
hydraulic pressure
Pneumatic
FAQ
1. What is the delivery period?
R: In general, the delivery period is about 30-45 working days.
2. What are the after-sales services?
R: We have a professional technical team that can solve your problems online 24 hours.
3. Does the product accept customized service? What aspects can be customized? (Such as color, shape, size, etc.)
R: Yes, customized service is feasible, such as printing your company logo and so on.
4. Do you accept small orders (or what is the minimum order quantity, etc.)?
R: Yes, we can also provide 1 set of machine.
5. How many years of production experience does your company have?
R: More than 10 years, we have several professional and experienced technical instructors to provide you with after-sales guidance.
6. What are the characteristics of the material of this product?
R:Our Swiss Lathe machine has been CE certified, and the geometric accuracy of the machine tool is in accordance with the factory standards and the Chinese General Rules for Metal Cutting Machine Tools GB/T1742.1-1998 (International ISO230-1-96).

---
