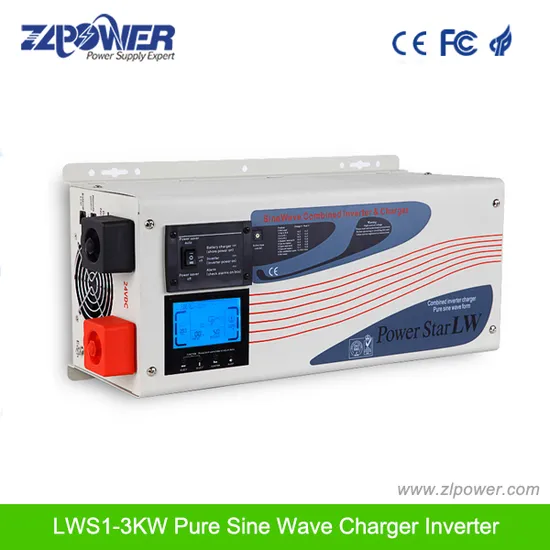

| Model | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 | |
| AC Input | Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Voltage | 120VAC/230VAC | 230VAC | |||||
| Acceptable Voltage | 194-243VAC/164-243VAC(wide mode) | ||||||
| Line low Transfer | 85V±4%/184(154 wide mode±4% ) | ||||||
| Line low Return | 95V±4%/194(164 wide mode±4% ) | ||||||
| Line high Transfer | 135V±4%/253±4% | ||||||
| Line high Return | 127V±4%/243±4% | ||||||
| Frequency | 50Hz or 60Hz (auto sensing) | ||||||
| Line low Transfer | 47Hz for 50Hz, 57Hz for 60 Hz | ||||||
| Line high Transfer | 55Hz for 50Hz, 65Hz for 60 Hz | ||||||
| Out Input | Phase &waveform | Pure Sine Wave(bypass mode sync to input) | |||||
| Voltage | 100/110/120/130VAC, 208/220/230/240VAC (bypass mode sync to input) | ||||||
| Voltage Regulation | ±10%rms(bypass mode sync to input) | ||||||
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) | ||||||
| Peak Power | 3 times of rating power | ||||||
| Short Circuit Protection | Yes, shutdown after 10ms | ||||||
| Power Factor | 0.9-1.0 | ||||||
| DC Input | Battery Voltage | 12V/24V/48V | 24V/48V | ||||
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V | ||||||
| Low Battery Alarm | 10.5V for 12V, 21V for 24V, 42V for 48V | ||||||
| Low Battery Transfer | 10V for 12V, 20V for 24V, 40V for 48V | ||||||
| High Voltage Alarm | 16V for 12V, 32V for 24V,64V for 48V | ||||||
| Max Charging Current | 20A/35A/70A/90A | ||||||
| Over charge Voltage | 15.7V for 12V,31.4V for 24V, 62.8V for 48V | ||||||
| Transfer Efficiency | Line Mode | >95% | |||||
| Battery Mode | >88% | ||||||
| Power saver | Available when the load is less than 25 Watts | ||||||
| Indicators | Switch selector | Saving Mode is on/off when push the switch forwards/backwards , Keeping it horizontal is turning the inverter off. | |||||
| Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. | ||||||
| Protections | low battery/ over charging /over temp/over load | ||||||
| Communications | RS-232/USB(custom-made) | ||||||
| Enviromental | Operating Environment | 0-40ºC,0-90%ºC RH(non-condensing) | |||||
| Audible Noise | <60dB | ||||||
| Net Weight (KG) | 18 | 20 | 22 | 35 | 38 | 40 | |
| Dimension (LxWxH) | 446×218×179mm | 605×218×179mm | |||||
| Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) founded in 2007. Our company is a leading manufacturer for inverter and ups of ISO9001 approved, which is a key hi-tech enterprise in state "Torch Plan," integrating science, industry, trade, and investment into a whole. ZLPOWER factory registered capital of RMB 50million, covering three floor area of 10000sq.m, and owning assets of RMB 300 million. And our products had passed Thayer certification, CE certification, UL certification, ETL certification, CCC certification. OEM and ODM are acceptable. One-stop service the price, quality, service, and after-sales service are all things you need are provide. We are factory direct sales, wholesale and retail are acceptable, good quality and the price is favorable to help your business. |
