Tooth Shape Corrugated Panel Curving Machine

Product Description

tooth shape corrugated panel curving machine
1.Technical parameter
Product name tooth shape corrugated panel curving machine

tooth shape corrugated panel curving machine
1	Cutting&Hydraulic type	Cut slide/ Double guide pillar
2	Hydraulic motor powe	3kw-7.5kw
3	Cutting drive	Decelerating motor + Chain drive gear all by high-frequency
4	Length measurement	Encoder
5	Control System	Panasonic /Siemens / Schneider / Delta PLC
6	Chain Size	1inch/2inch
7	Main Frame	300mm/350mm H-Beam or 350mm
8	Backboard Thickness	17mm/200mm
9	Feeding Material	Better as your drawing or from our designer
10	Feeding Thickness	0.18mm-0.8mm
11	Effective width	Better as your drawing or from our designer
12	Productivity	8-12/min
13	Roll Station	3-4rows(according to different design)
14	Roller Diameter	70mm/75mm(depend on different design)
15	Roller material	45# steel
16	Cutter material	Cr12 mould steel heat-treated hardness of HRC = 60-62 degrees
17	Overall Size	Size of our designer
18	Total Weight	2t-4t

2.The sample of the tooth shape corrugated panel curving machine

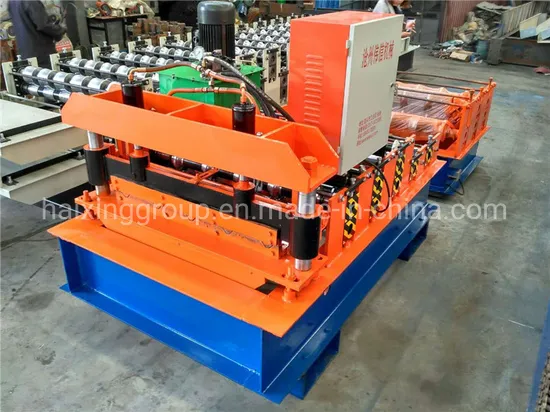

3.tooth shape corrugated panel curving machine picture
tooth shape corrugated panel curving machine after sales services
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
Company infomation
Tianjin Haixing Imp & Exp Co., Ltd. Is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of machines. It is located in northwest of Tianjin, China . As a long history of cold roll forming machine production base. For example :color steel roofing sheet roll forming machines, C&Z Purlin machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely. We would like to invite you come and join us to build our mutual benefit.

---
