High Quality Double Column CNC Bandsaw Machine GHS4260

Product Description

Product Description

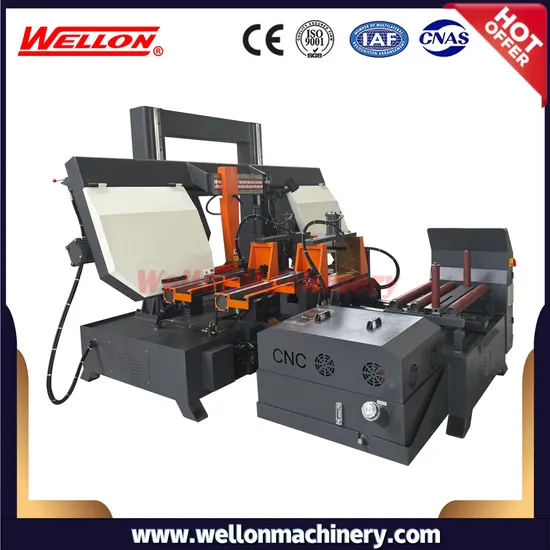

Double Column Metal Cutting CNC Bandsaw Machine GHS4260
Product Parameters
1.Used for cutting all kinds of metal material
2.Reasonable structure,stable performance,high precision.
3.PLC control,high efficiency,automatic hydraulic bar feeder.
4.Upper hydraulic clamp for bundle cutting
Technical Parameter:

Model	GHS4260
Max.cutting capacity (mm)	600-600x600
Saw blade speed(m/min)	27,45,69
Saw blade size(mm)	54x1.6x6640
Main motor(kw)	7.5
Hydraulic motor(kw)	1.5
Single feed length(mm)	500
Feeding precision(mm)	±0.20
Main transmission structure	Worm gear transmission
Working clamping mode	Hydraulic vice
Saw blade tensioning method	Manual
Cleaning	wire brush & flood coolant
Dimensions (mm)	3100x2500x2100

Standard accessories:
PlC control system
1 saw blade
Hydraulic workpiece clamping 500mm travel
Bundle vise
Material support roller stand 1 meter
Coolant system
Work lamp
Blade protection covers
Blade cleaning brush
Optional accessories:
Hydraulic blade tension
Automatic chip removal device
Variable saw blade speed
Fast drop protection device
Blade breakage detector device
Roller table
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Double ColumnMachining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper
machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
