Multi-Function Vertical Milling Machine with High Travel Capacity

Product Description

Product Description

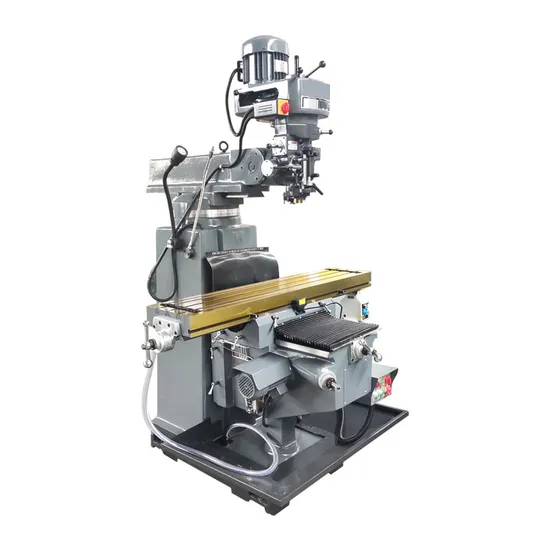

Vertical and Horizontal Turret Milling Machine Fresadora 4HW 5HW Metal Universal Milling Machine
1. The Turret Milling Machine showcases an exceptional design, offering versatile machining capabilities that include drilling, boring, and milling of both plane and inclined surfaces. Additionally, with suitable attachments, it can perform intricate tasks such as milling helical slots, rounding surfaces, and crafting gears, racks, and splines.2. Featuring a rectangular guide way on the Y-axis, this machine ensures outstanding rigidity and stability. The radial milling machine saddle is lined with durable TF material, enhancing its longevity and reliability.3. Equipped with a high-speed milling head imported from Taiwan, the machine promises unmatched precision and performance.4. The slide way and table surface are meticulously hardened, guaranteeing durability and precision during heavy-duty tasks.5. Specialized tooling is utilized for machining the T-slot, ensuring it remains within the table edges, which not only boosts rigidity but also maintains an aesthetically pleasing machine design. 6. Precision hand-scraped slide ways assure high accuracy and smooth operations, reflecting the machine's superior craftsmanship.7. The XYZ axis screws, crafted in Taiwan, provide robust performance and precision.8. The XY screws are equipped with double nuts, facilitating easy adjustments and maintaining optimal spacing between the screw and the nut for enhanced efficiency.9. Designed with a unified base, the XY screw bracket offers remarkable precision and rigidity, reinforcing the machine's structural integrity.10. The electro system is crafted to meet CE standards, ensuring safety and high performance compliance.
Detailed Photos

Specifications	Units	4HW	5HW
Table size	mm	1270x254	1370x305
Table travel	mm	780/420/400	810/420/400
T slot(number-width-pitch)	mm	3-16-65	3-16-65
Spindle taper		(V) R8/ISO40 (H) ISO40	(V) R8/ISO40 (H) ISO40
Spindle speed range	rpm	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps
		Optional:variable 65-4000	Optional:variable 65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	2.2(V)3(H)	2.2(V)3(H)
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1750	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250

1. Crafted from high-grade Meehanite casting, this solid and heavy model underscores durability and quality. 2. The solid rectangular slideways for the Y-axis enhance the machine's stability and operational precision. 3. All axes feature adjustable dovetail slideways, allowing for smooth and precise adjustments. 4. Equipped with a right-left handed rotation capability, this machine offers versatile operational flexibility. 5. High concentricity precision is achieved through taper roller bearings, with a remarkable accuracy of less than 0.01mm measured at the spindle sleeve. 5. The automatic spindle sleeve feed ensures efficient and consistent operation. 6. The main switch is designed with motor protection, right/left-handed rotation capability, and an emergency-stop button for enhanced safety and ease of use. 7. Combining affordability with stability, this machine offers excellent value for investment.
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co., Ltd is strategically located in Zhengzhou, the heart of China. With extensive experience in exporting machinery, we pride ourselves on delivering not only consistently high-quality products but also exceptional customer service.We offer a comprehensive range of machine tools to the international market, including Lathe Machines, CNC Lathe Machines, Milling Machines, CNC Milling Machines, CNC Machining Centers, Grinding Machines, Hydraulic Presses, Bending Machines, Drilling Machines, Press Brakes, Shearing Machines, and a variety of machine tool accessories. Our team includes seasoned engineers with years of professional training, ready to assist our customers. Our engineers play a pivotal role in inspecting goods prior to shipping and overseeing all stages of the production process. We are committed to ensuring the highest quality standards and customer satisfaction. Our expertise is your assurance of precision and reliability in every machine we deliver. Our expertly trained engineers ensure rigorous quality control from production to delivery, safeguarding consistent performance and customer satisfaction. Our dedication to excellence in machinery production is matched by our commitment to supporting our clients every step of the way. From initial production to final inspection, we track and manage every aspect of the manufacturing process to guarantee superior quality and performance.
FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
