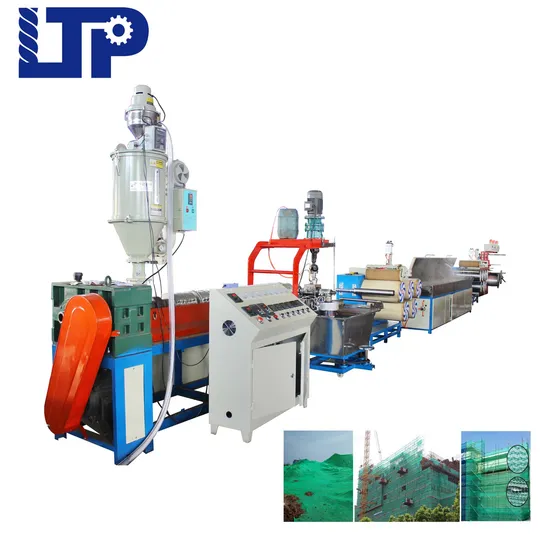

Plastic PP PE Film Recycled Single Screw Extruder Machine

Product Description

Purpose and characteristics
The machine can make flat yarns with PP/ HDPE material after heating, extrusion, section- ing and stretching. The winded yarns can be widely used for weaving packing bags, vege- table bags, shading net, dust net. Etc..The screw and barrel of extruder are made by high quality 38#CrMoAIA; the cold water tank is made of stainless steel; The seven rolls strethc- ing device adopts gear box transmission; yarns drawing and fixing adopts advanced hot air oven. Therefore, the main technical function of this unit can reach to international high level of fast speed, high capacity, low energy consumption, and good shape forming . The entire unit has the advantage of compact structure, attractive appearance, smooth running, flexible and reliable control, simple operating.
Specifications:

Model	SCREW MATERIAL	Screw dia	L/D	Rotate speed	Motor power	Modle width	Output
BZSJ-65	38#CrMoAIA	65	30:1	30-70	15	600-800	40-60
BZSJ-80		80	30:1	30-70	22	800-1000	60-80
BZSJ--90		90	30:1	30-70	37	1000-1200	80-100
BZSJ-100		100	30:1	30-70	45	1400-1600	100-130

Detailed Images
components:
1. extruder with die head, electric box, cold water container
2. the first stretching device
3. heating board
4. needle roller (optional)
5. the second stretching device
6. winder ( three types available)
Final product
Logistics packaging
Related products


Company Profile
Laizhou Lutong Plastics Co.,Ltd. is a comprehensive manufacturing company that integrates plastic machinery manufacturing, rope and wire. The main productics are plastic drawing machine, film blowing machine, tear film machine, ball machine, cylindrical molding machine,rope making machine, plastic recycling equipment.The company is located in the development zone of Laizhou City, covering an area of 20,000 square meters. It consists of a plastic handing factory, a rope factory, a tear film ball factory and an international business department. More than 100 sets of special equipment for twisting, rope making and thread making.

---
