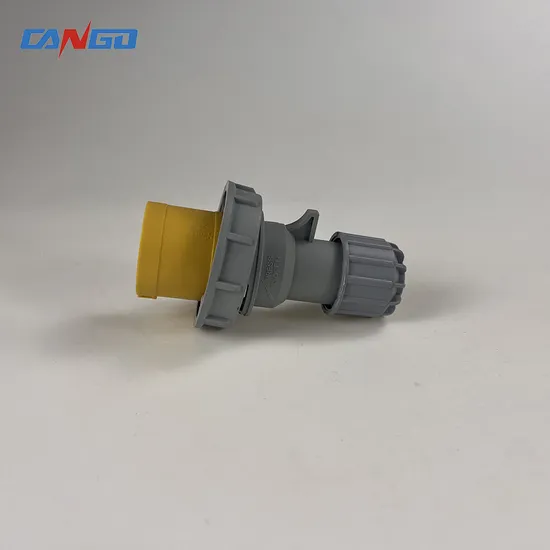

New Waterproof Electrical Cee Three Phase Industrial Power Cable Female Connector Plug

Product Description

Detailed PhotosProduct Name: Industrial Plug
Model Number:KG-013
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Plug	KG-013	16A	6h	220-250V~	2P+E	IP44
Plug	KG-023	32A	6h	220-250V~	2P+E
Code	Size(mm)				Cable nominal cross-section area(mm²)
	a	b	c	Φ
KG-013	59	51	122	6	1-2.5
KG-023	75	64	136	8	2.5-6

Product Name: Industrial Plug
Model Number:KG-0132
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Plug	KG-0132	16A	6h	220-240V~	2P+E	IP67
Plug	KG-0232	32A	6h	220-240V~	2P+E	IP67
Code	Size(mm)				Cable nominal cross-section area(mm²)
	a	b	d	sw
KG-0132	118	82	6-15	38	1-2.5
KG-0232	146	100	10-20	50	2.5-6

Product Name: Industrial Plug
Model Number:KG-0132-4
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Plug	KG-0132-4	16A	4h	110-120V~	3P+E	IP67
Plug	KG-0232-4	32A	4h	110-120V~	3P+E	IP67
Code	Size(mm)				Cable nominal cross-section area(mm²)
	a	b	d	sw
KG-0132-4	118	82	6-15	38	1-2.5
KG-0232-4	146	100	10-20	50	2.5-6

Product Name: Industrial Plug
Model Number:KG-0133
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Plug	KG-0133	16A	6h	220-250V~	2P+E	IP67
Plug	KG-0233	32A	6h	220-250V~	2P+E	IP67
Code	Size(mm)					Cable nominal cross-section area(mm²)
	a	b	Φc	d	e
KG-0133	75.5	47	7-15	139	112	1-2.5
KG-0233	99	63	10-20	175	130	2.5-6

Product Name: Industrial Plug
Model Number:KG-0252
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Connector	KG-2152	16A	6h	220-380V~	3P+N+E	IP67
				240-415V~
Connector	KG-2252	32A	6h	220-380V~	3P+N+E	IP67
				240-415V~
Code	Size(mm)				Cable nominal cross-section area(mm²)
	a	b	c	sw
KG-2152	145	92	8-16	42	1-2.5
KG-2252	168	102	12-22	50	2.5-6

Product Description
Manufacturing Technique
Our AdvantagesWe ovide diffe ent series products for different envi onment.Using esh material impo ting good quality copper and on parts to make product with longer mechanical life esistance to seve weather, ageing ,alkali resistance ate proof and dust evention.
Company ProfileZhejiang Kangge Electric Co.,Ltd, with the logo CANGO, established in 2010, located in Yueqing Industrial Park, Zhejiang Province,is one of the technological enterprises in Zhejiang province,who devotes itselfto the design,R&D,manufacture, sale and service of meter box.Since the establishment in 2010,Kangge insists on the principle of"honest-based,wining success through quality", and develop its spirit of"unity, communication, development and innovation".We continuously develop and innovate in the area of distribution box, perfect series products, to meet the demand of domestic and abroad customers.
Kangge's existing plant area is more than 50000 square meters.Total employees are more than 200,among which,15 are senior management employees;20 are professional technical engineers;8 are R&D employees.Up to now,all of Kangge's products have passed CE,the test of China Compulsory Product Certification(CCC test),ISO9001 Quality and Management System Certification,ISO14000 Environmental Management System Certification,as well as OHSAS18000 Occupational Health and Safety System Certification.
Exhibition Display
Certifications
FAQQ:Your INDUSTRIAL PLUG&SOCKET seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from others!
A: We strick in high quality.The materials of our industrial plugs and sockets are PA66 nylon. They have all passed the flame retardant test V0 rate( 960°C) and reached an impact resistance level of IK08. The pins inside are made of high-quality solid brass,good corrosion resistance.Products pass the test of CQC and CE.
Q: Is your company a manufacturer for a trading company?
A: We are professional manufacturer in industrial electrical appliances since 2010 years.
Q:Can I get a sample for test before place order?
A:Of course.
Q:Can you print our own logo?
A:Yes, we provide OEM&ODM service.And we made a lot of customized products.
Q:How's the delivery?Because I really need them is urgently?
A:We will deliver sample in 2-5days.Mass production around 30 days.If you have urgent requirement, pls send us list to check with stock. We have sufficient stock for best-sellers.
Q: What's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,Trade Assurance.

---
