Zetron Th100-8 8 Channels Gas Alarm Controller

Product Description

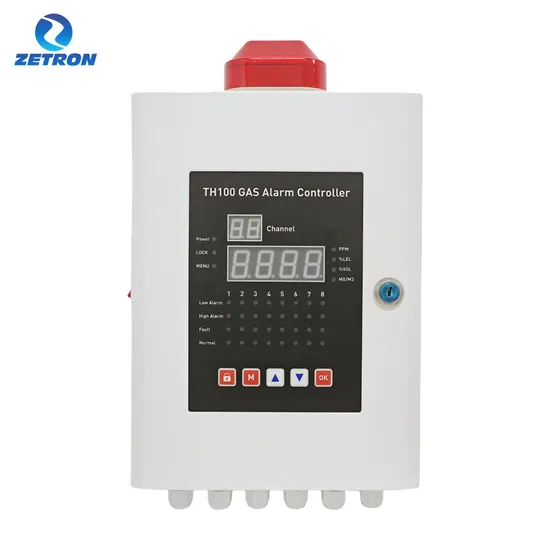

TH100-8 8 channels gas alarm controller
Product Description
With new design of Touch screen, simple operation. It could connect the TH100 fixed gas detector to make up as the industrial gas detection system. It will display the all gas concentration for each gas detector, when the gas concentration level up to the preset data, the controller will alarm with acoustic and light signal. Synchronously, the actuator will begin to drive the exhaust or the cut off valve and other equipment, in order to prevent the poisoning accident, explosion or fire. The TH100 Combustible Gas detector controller and TH100 is Alarm control main engine wireless it could guarantee the security of the industrial working place.
Product Feature
· Performance stable signal acquisition intelligent control system
· Water proof, explosion proof, condensation resistance
· Fine craftsmanship upsets your perception
· Easy reading, digital tube branch straight display
· Sound and Light alarm higher or lower than the alarm value timely alarm
· Implement remote monitoring can be combined with other equipment ,like SMS module fan, alarm lamp, battery value, gas detection system.
· The installation is simple and convenient
· Data analog and digital processing,good stability,fast computing speed,good chip stability.
Product Parameters

Gases to be detected	Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.
Detection range	Electrochemical sensor for O2:0-30%VOL
	Electrochemical sensor for H2: 0-1000ppm
	IR sensor for CO: 0-1000ppm
	IR sensor for CO2: 0-100%VOL
	IR sensor for H2S: 0-200ppm
	IR sensor for CH4:0-100%LEL
	other ranges can be customized
Resolution	1ppm
	other resolution can be customized
Detection principle	PID photoionization Depending on the type of gas, range, field environment and user demand, can be customized.
Allowable error	≤±2% F.S (other or higher precision levels can be customized)
Working environment	Temperature: -40 ºC ~ + 70 ºC
	Humidity: ≤10 ~ 95% RH
Sample gas temperature	-40 ºC ~ + 70 ºC, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ºC.
Power supply	3.6VDC, 10000mA high capacity rechargeable polymer battery
Display mode	3.5-inch high-definition color screen
Detection mode	Built-in pump-suction type measurementFlow rate at 800 ml / min
Alarm mode	Sound & light alarm, vibration alarm, turning off the alarm.
Protection level	IP66
Explosion-proof type	Intrinsically safe type
Explosion-proof mark	Exia II CT6
Exterior dimensions	230×210×120 mm (L×H×W)
Weight	2.5Kg

Detailed Photos
Application
The TH100 Gas detection controller used to connect with the fixed gas detector and the related equipment in industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.
CertificationsThe products have passed ISO9001 quality management system certification, IS014001 environmental management system certification,CCEP China environmental protection products certification and obtained the corresponding product explosion-proof certificate, CPA type approval certificate, CMC measurement license, appearance brick certificate, software copyright registration certificate, etc.
Company ProfileBeijing Zetron Technology Co., Ltd, formerly Beijing Senre Technology Co., Ltd was founded in 2011, located in Beijing with convenient transportation access. We have almost 12 years experience in the retail, import and export of gas detection and monitoring equipment.
This experience has enabled us to form an organisation based on knowledge and expertise and have allowed us to supply a range of gas detectors and monitors that are tailored to our customers needs and budgets. Our aim is to provide the best values products with high quality and style.To provide the new affordable and complete service for gas detection needs for the industrial, engineering and shipping market and our friendly staff are here to help with advice and prices. So far, we have customers/buyers from over 20 countries/regions like Bulgaria, Brazil, Canada, China, Colombia, Germany, Iraq, Japan, Philippines, Russian Federation, Singapore, Taiwan, Thailand, Uruguay, United States, Ukraine, Vietnam, etc.
The list of countries still expanding.....!!We are committed to become the International Well Know Provider to provide similar or better alternative, original merchandises & service to meet customers' needs, requirements and solutions. Every customer is important to us and we strive to satisfy all our Customers needs and expectations.Local and International Distributors, Dealers and Resellers are Welcomed! Please contact us at the homepage.FAQ

---
