New Design Lever Hoist Chain Hoist 3ton Chain Block Lever Block Manual Chain Block Chain Pulley Block Hoist Lever Hoist Lifting Equipment Chain Block Hoist

Product Description

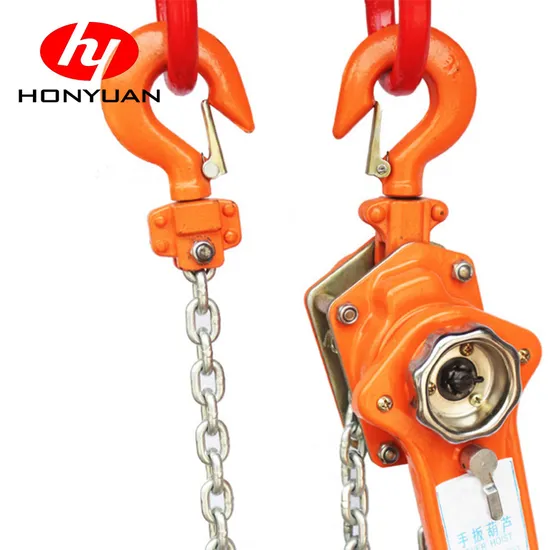

Hoist Lever Chain Block Hoist 0.75ton High Quality Manual Lifting Chain Hoist Lever Block Product Description
Detailed Photos

Product Parameters

HSHZ
Model			HSHZ
Capacity		T	0.75	1	1.5	2	3	6	9
Standard lift		M	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Running test		T	1.125	1.5	2.25	3	4.5	7.5	11.25
Effort required to lift max.load		N	140	140	240	240	320	340	360
No.of FALLS of load chain			1	1	1	1	1	2	3
Load chain dia.(mm)		mm	6	6	8	8	10	10	10
Dimensions	A	mm	148	148	176	176	195	195	195
	B	mm	88	88	102	102	9	109	109
	C	mm	135	135	155	155	211	254	319
	D	mm	32	32	36	36	46	46	57
	L	mm	290	290	415	415	415	415	415
	H	mm	320	320	380	380	480	600	700
Net weight(kg)		kg	7	7.5	11	11.5	19	32	47
Packing(LxWxH)		mm	370x140x170	370x140x170	520x140x180	520x140x180	550x160x210	550x160x210	620x485x260

Certifications

Packaging & Shipping

Company Profile

Exhibition
FAQ1.How about after sales service?
We supply free spare parts to replace your hoists. Besides, we can send your the video to guide your engineers.
2.How to ensure the quality?
Before packing hoist, our workers will send hoists to inspection center well checked.And we take detailed pictures for each hoist before packing.You can offer our serial No.And then know the detailed products.
3.If it is spare parts?
We are manufacturing 60% spare parts in our factory to control high quality, and the other 40% spare parts supplier are from our long term supplier.Before stocking in warehouse, we have strict inspection for each parts.
4.If it is warranty?
We can provide 1 years warranty for electric parts, 2 years for mechanical parts.

---
