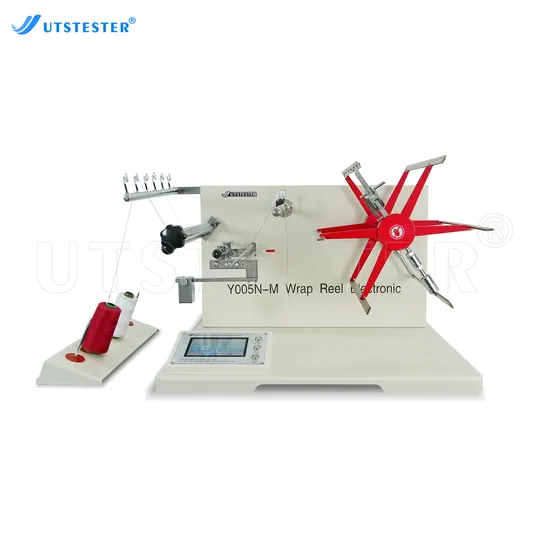

Yarn Wrap Rreel Tester Yarn Length Tester Winding-Machine Wrap Reel Electronic

Product Description

Product Description
The instrument is used for the measurement of yarn density (or count) and the test of yarn breaking strength by winding the sample on yarn tube with yarn frame.
Standard

ISO 7211-5, ASTM D1907, ISO2060, GB/T4743, GB/T6838, GB/T14343

Features 1. Touch screen display, Chinese and English menu, man-machine dialogue mode.
2. Convenient and fast parameter input.
3. Smooth start and stop, low running noise, accurate ring count.
4. Continuous stepless speed regulation.
Product Parameters

Model	Y005N-E	Y005N-M
Reel circumference	54± 1/16in (English system)	1000± 1mm (Metric system)
Working positions	6
Spindle distance	65 mm
Yarn frame speed	30 ~ 300 r/min
Guide rod reciprocating range	35 mm
Single yarn tension adjustment range	0 ~ 100 cN
Lap number setting range	1 ~ 9999 laps
Power	AC 220V±10% 50Hz 180W
Size (L×W×H)	760×650×460mm
Weight	About 60Kg

More Products
Company Profile
Our Exhibition
Our Customers
Our Advantages
FAQ
Q: How is your service?
- All of test devices will be calibrated and debugged before delivery to guaranty the quality.
- Our professional after-sale team will help you solving any problem within 24 hours* 7 days by emails or videos
- English operation manual and operation video will guide you how to use it.
- On-site machine training & installation can be provided with certain charges.
Q: What's your warranty period? A.12 months. In case of product problems, we provide needed spares parts for free during the warranty (exclude consumables and man-made damages)
Q: What's the payment term?
A: Usually TT, L/C are available. For others, please contact with us for negotiation.
Q: What's your lead time? A.We have professional production line and stuff whom can make a nice quality in a short time. Usually, within 5-25 days is ok, which is based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
A: Yes, we generally provide two calibration certificates(optional).
• ISO 17025 certificate provided by a third party inspection company with charges.
• Calibration certificate provided by UTS without charges.
Q: Can you send report of fumigation report?
A: Our packing is composite board, not log, so it do not need fumigation treatment.
