HS7k Series CNC Hydraulic Swing Beam Shear (shearing machine)

Product Description

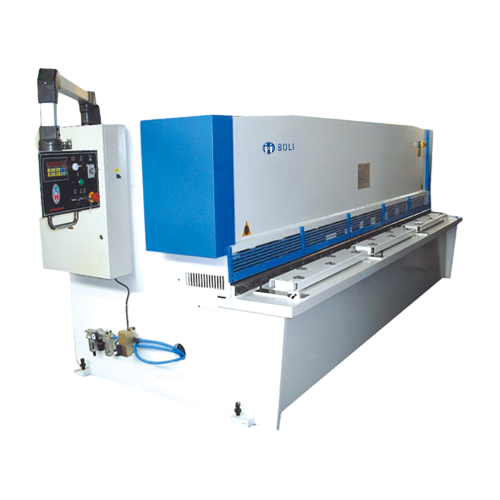

HS7k Series CNC Hydraulic Swing Beam Shear
Features:
> Hydraulic drive, swing beam, return of knife is smooth and prompt by accumulator nitrogen cylinder.
> Possessing a speed blades gap adjusting device, permit to adjust steplessly the blades gap.
> The stroke and frequency of shearing can be controlled.
> The machine has the function of single shearing and automatic continues shearing.
> After inputting precomputed data, the back gauge can be automatically moved, positioned and stopped.
> The vertical gripper of intellect position is controlled by pneumatic system.
Product Parameters

Model	Max. Shearing Thickness	Max. Shearing Width	tensile strength of plate to be cut	shearing angle	number of stroke	back gauge adjustment	Main Motor Power
	mm	mm	n/mm	°	min -1	mm	KW
HS7K-4*2500	4	2500	≤450	1°30′	20	20-500	4
HS7K-4*3200	4	3200	≤450	1°30′	18	20-500	5.5
HS7K-4*4000	4	4000	≤450	1°30′	12	20-500	5.5
HS7K-4*5000	4	5000	≤450	1°30′	10	20-800	5.5
HS7K-4*6000	4	6000	≤450	1°30′	7	20-800	7.5
HS7K-6*2500	6	2500	≤450	1°30′	18	20-600	7.5
HS7K-6*3200	6	3200	≤450	1°30′	16	20-600	7.5
HS7K-6*4000	6	4000	≤450	1°30′	12	20-600	7.5
HS7K-6*5000	6	5000	≤450	1°30′	10	20-600	7.5
HS7K-6*6000	6	6000	≤450	1°30′	7	20-800	7.5
HS7K-8*2500	8	2500	≤450	1°30′	14	20-600	7.5
HS7K-8*3200	8	3200	≤450	1°30′	10	20-600	11
HS7K-8*4000	8	4000	≤450	1°30′	8	20-600	11
HS7K-8*5000	8	5000	≤450	1°30′	7	20-800	15
HS7K-8*6000	8	6000	≤450	1°30′	6	20-800	15
HS7K-10*2000	10	2000	≤450	1°30′	14	20-600	11
HS7K-10*2500	10	2500	≤450	1°30′	12	20-600	11
HS7K-10*3200	10	3200	≤450	1°30′	10	20-600	11
HS7K-10*4000	10	4000	≤450	1°30′	8	20-600	15
HS7K-12*2000	12	2000	≤450	2°	12	20-600	15
HS7K-12*2500	12	2500	≤450	2°	10	20-600	18.5
HS7K-12*3200	12	3200	≤450	2°	9	20-600	18.5
HS7K-12*4000	12	4000	≤450	2°	8	20-800	18.5
HS7K-12*5000	12	5000	≤450	2°	7	20-800	18.5
HS7K-12*6000	12	6000	≤450	2°	6	20-800	18.5
HS7K-16*2500	16	2500	≤450	2°	8	20-600	18.5
HS7K-16*3200	16	3200	≤450	2°	7	20-600	18.5
HS7K-16*4000	16	4000	≤450	2°	5	20-800	18.5
HS7K-20*2000	20	2000	≤450	2°30′	8	20-600	22
HS7K-20*2500	20	2500	≤450	2°30′	6	20-800	22
HS7K-20*3200	20	3200	≤450	2°30′	6	20-800	30
HS7K-20*4000	20	4000	≤450	2°30′	6	20-800	30
HS7K-25*2000	25	2000	≤450	3°	6	20-800	30
HS7K-25*2500	25	2500	≤450	3°	6	20-800	30
HS7K-25*3200	25	3200	≤450	3°	6	20-800	37
HS7K-30*2500	30	2500	≤450	3°30′	6	20-800	37
HS7K-30*3200	30	3200	≤450	3°30′	5	20-800	45

Detailed Photos
FAQ
Q: What is a CNC shearing machine?A: A CNC shearing machine is a precision cutting tool that uses computer numerical control (CNC) technology to accurately and efficiently cut various types of sheet metal.Q: How does a CNC shearing machine work?A: A CNC shearing machine uses a hydraulic or mechanical system to apply force to a blade, which then cuts through the sheet metal along a programmed path guided by CNC controls.Q: What are the advantages of using a CNC shearing machine?A: CNC shearing machines offer high precision, speed, and repeatability in cutting operations. They also provide versatility in cutting different types and thicknesses of metal sheets.Q: What types of metals can be cut with a CNC shearing machine?A: CNC shearing machines can cut a variety of metals, including stainless steel, aluminum, copper, brass, and mild steel.Q: Can a CNC shearing machine handle different sheet thicknesses?A: Yes, CNC shearing machines are designed to handle different sheet thicknesses, and the cutting parameters can be adjusted accordingly.Q: How accurate are CNC shearing machines?A: CNC shearing machines offer high accuracy, typically with tolerances within a few thousandths of an inch, ensuring precise and consistent cuts.Q: Can a CNC shearing machine handle complex shapes?A: Yes, CNC shearing machines can cut complex shapes by following programmed paths, allowing for intricate and precise cutting operations.Q: What safety precautions should be taken while operating a CNC shearing machine?A: Safety precautions include using proper protective equipment, ensuring proper machine guarding, and following safe operating procedures to prevent accidents during operation.

---
