1lyx-330 3 Discs 900mm Working Width Heavy Duty Pipe Disc Plough for 55-80HP Tractor

Product Description

1LYX-330 3 discs 900mm working width Heavy duty Pipe Disc plough for 55-80HP tractor
Product Description:
1LYX series of disc plough, also named Tube Disc plough, Pipe Disc plough. It is one kind Heavy-duty One-way Disc plough, It is used for deep ploughing in root-infested,sticky, stony and hard soils.
The machine is completely mounted with 40-150HP tractor. During operation,the discs by its rotating to turn the soil. Particularly,it is suitable for operation on the field with grasses,straw and stems of crops or plants, big soil resistance and with many stones and brickbat,etc.in the field. It is good at cutting the grasses, straw, free from being stopped by the grasses, soil or stones etc.
It is efficient in the work, good quality during operation, easy to adjust and strong, durable.
Main Features:
1.High carbon disc blade hardness:30-44 HRC, Assuring the toughness and ear ability of disc blade.
2.Frame type tubular seamless steel pipe.
3.In conformity with the soil conditions, it is being produced with 2-3-4-5 disc (bottom) version with an option for extra kit for converting it to extra disc plough.
Main Specification and Technical Parameter:

Model	unit	1LYX-230	1LYX-330	1LYX-430	1LYX-530
Working depth	mm	250	250	250	250
Working width	mm	600	900	1200	1500
Quantity of disc	pcs	2	3	4	5
Disc diameter	mm	660	660	660	660
Overall weight	kg	300	350	410	460
Matched power	hp	40-50	55-80	90-120	120-150
Linkage		Standard three point mounted

1LYX-330 one way Pipe disc ploug Main Feartures and Specification :
We manufacture 2-5 Pcs disc ploug for 40-140HP tractor :
Disc plough by Iron crate case packing :
High quality Disc plough have ISO,CE, PVOC COC, CO etc certificates:

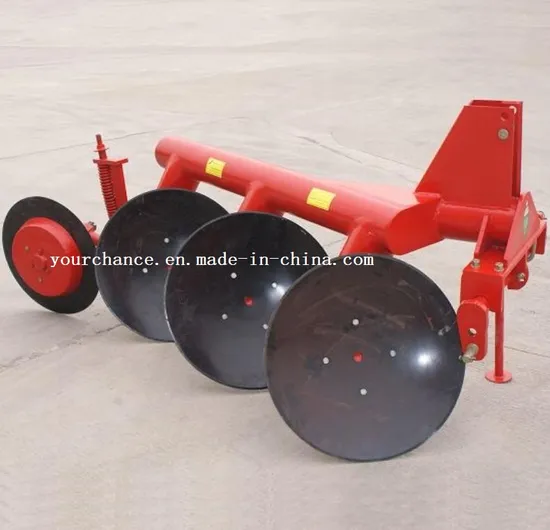

1LYX-330 Disc plough details show:
Best price will be quoted for you as soon as receive your Requirement !

---
