| US$27,857.00 | 1 set (MOQ) |

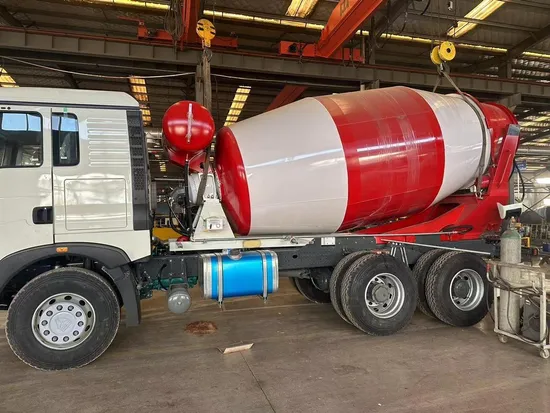

product name | 6 Cubic Meters Concrete mixing truck | Product trademark | HT |
Total mass(Kg) | 15560 | Tank volume: 6 square | 6 |
Rated load mass(Kg) | 8505 | Vehicle Dimensions (mm) | 6800×2100×2900 |
curb weight(Kg) | 6860 | Cargo size(mm) | ×× |
Number of axes | 2 | PTO | |
engine | 160 | chassis name | () Truck chassis (Class II) |
cab | D912(2080) | gearbox | 8JSD Fast 8JSD |
Front axle T | 5 | Rear axle T | 153 |
wheelbase | 3900 | girder | 250 double deck 7+5 |
Chassis Dimensions (mm) | 5990×2100×2900 | Number of tires | 6 |
Fuel type | diesel oil | Tire specifications | 9.00R20,16PR |
Emission Standards | GB17691-2005,GB3847-2005 GB17691-2005 National V, GB3847-2005 | ||
engine model | YC5EG160-50 | Displacement (ml): | 160 |
Power (Kw) | 217 | ||
| Tank volume (L) | 350 | radiator | Kaipeng-18L |
Fuxin reducer | FXJ540 | Interpump oil pump | 60 Interpap 60 |
motor | Interpap 60 | ||
