Product Details
Product Description
Product Description
Product details
Product Description

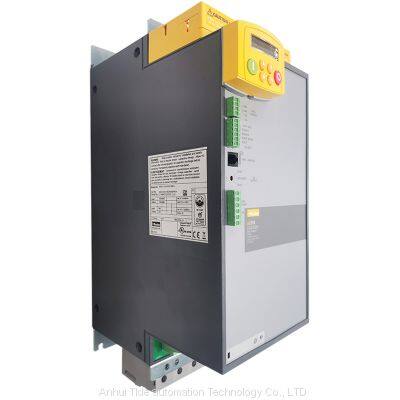

The AC890 is a compact, modular systems AC drive engineered to control speed and position of open-loop and closed-loop, single- or multi-motor AC induction or servo motor applications, up to 500HP.
Brand
| Parker
| Product Type
| AC Drive
|
Drive Axis Type
| Single Axis TechnologyMulti Axis Technology
| Product Series
| AC890
|
Input Voltage
| 3*230VAC3*380-480VAC
3*500-690VAC
320-705VDC(Common Bus)
| Output Power
| 0.75 - 1500 HP
|
Compatible Motor Type
| Brushless ServoFrameless Servo
Induction
Spindle
Torque
PMAC
| Compatible Feedback Device
| Resolver Incremental Encoder
|
Modes of Control
| V/HzSensorless Vector
Closed Loop Vector
Active Front End
Speed Control of Permanent
Magner Motor
| Communication Interface
| RS232 / RS485CANopen
ControlNet
DeviceNet
Profibus
Profinet
Ethernet TCP/IP
|
Operating Temperature
| 0-45 °C for Frames B-F / derateup to max 50 °C 0-40 °C for Frames G-K / derate up to max50°C, 32-113F for Frames B-F(derate up to
122F max)32-104F for Frames G-K (derateup to 122F max)°F
| Operating Altitude
| Up to 1000m ASL (derate >1000m)
|
Overload Rating
| Heavy Duty Rating (ConstantTorgue) : 150% for 60sNormal Duty Rating (VariableTorque) : 110% for 60sServo Mode Rating (Frames BD) :
200% for 4sServo Mode Rating (Frames E J): 150% for 60s
| Specifications Met
| CE(EMC & LVD) UL Listed cUl listed
|
Company Introduction
TLDE Automation Technology Co., LTD. (TLDE) is located in Dangshan County Economic Development Zone, Suzhou City, Anhui Province.It covers an area of about 17,000 square meters and owns about 16,000 square meters of automation plant. Tlde is a professional enterprise engaged in R&D, manufacturing and sales of motor drive and control automation technology. The company has a number of invention patents, its leading products include DC/900 Chinese and English DC drive, AC980 high-end inverter, high-power expansion all-in-one machine, DC transmission expansion cabinet, TL600 vector inverter, etc., throughout Asia, Africa, Europe and other countries, widely used in metallurgy, cable, papermaking, rubber, mining, etc. Can meet different working conditions, products involved in automation control applications, mechanical and electrical transmission control, motor energy saving, industrial energy saving and other fields.
The company has carried out industry-university-research cooperation with many universities and colleges, carried out exchanges on numerous scientific research projects, and carried out in-depth cooperation in core technologies and other aspects of the enterprise, established long-term cooperative relations, and constantly deepened the technological innovation ability. Through independent innovation, integrated innovation, introduction, digestion and absorption and other ways to achieve product technology upgrade.
At present, the company's R&D technicians account for more than 30%, among which engineers and people with master's degree orabove account for more than 50%. The company has an independent R&D center with an area of 300 square meters. Since its establishment, the company has been adhering to the "scientific and technological innovation, reputation based" for the purpose, adhere to the "quality first, pragmatic work, integrity management" concept, carry forward the continuous improvement, the pursuit of excellence of the professional spirit, down-to-earth, strictly regulate the code of conduct of the enterprise, to ensure that quality products to serve customers. The company always adhere to the technology as the base, committed to provide users with cost-effective equipment, perfect solutions, satisfactory after-sales service.
>>
