Bq Nq Hq Pq Metal Core Tray for Drilling

Product Description

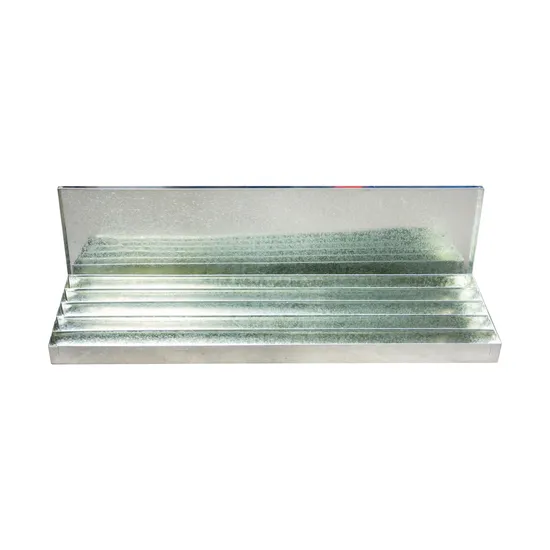

BQ NQ HQ PQ Metal Core Tray For Drilling

Metal type:

Size	290 * 1240 * 55 mm NMLC	280 * 1240 * 65 mm HMLC / HQ
Inseam Length	1200 mm	1200 mm
The width of each slot	55 mm	65 mm
Lattices Nos	5	4
Net weight with Lid	5.5 kgs	6 kgs

Plastic type:
Model:BQ
Size:1070×385×50
Inseam Length:1m
The width of each slot :48mm
Length of Cores to hold:6m
Lattices Nos:6
Weight: 2.2kgs (approx.)

Model:NQ
Size:1070×385×55
Inseam Length:1m
The width of each slot :55mm
Length of Cores to hold:5m
Lattices Nos:5
Weight: 2.2kgs (approx.)

Model: HQ
Size: 1070×385×70
Inseam Length: 1m
The width of each slot : 69mm
Length of Cores to hold: 4m
Lattices Nos: 4
Weight: 2.4kgs (approx.)


Model: PQ
Size: 1070×385×93
Inseam Length: 1m
The width of each slot : 92mm
Length of Cores to hold: 3m
Lattices Nos: 3
Weight: 2.8kgs (approx.)
