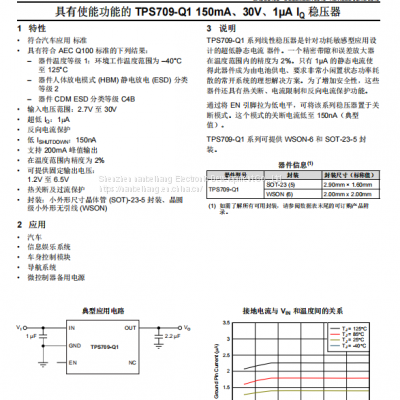

TPS70933QDBVRQ1 linear voltage regulator (LDO) TI original stock

Product Details

Product Description

Product Description
Characteristics of TPS709-Q1
Conform to automobile application standards
The following results comply with AEC Q100 standard:
Device temperature class 1: ambient operating temperature range – 40 ° C to 125 ° C
Device Human Discharge Mode (HBM) Electrostatic Discharge (ESD) Classification Level 2
Device CDM ESD classification level C4B
Input voltage range: 2.7V to 30V
Ultra low IQ: 1 µ A
Reverse current protection
Low ISHUTDOWN: 150nA
Support 200mA peak output
2% accuracy in temperature range
Fixed output voltage available:
1.2V to 6.5V
Thermal shutdown and overcurrent protection
Package: small outline transistor (SOT) - 23-5 package, wafer level small outline leadless (WSON)
Description of TPS709-Q1
TPS709-Q1 series linear regulators are ultra-low quiescent current devices designed for power consumption sensitive applications. A precision band gap and error amplifier has an accuracy of 2% in the temperature range. Only 1 µ A quiescent current makes this device an ideal solution for normally open systems that are battery powered and require very little idle power dissipation. In order to increase safety, these devices also have thermal shutdown, current limiting and reverse current protection functions.
By pulling the EN pin to the low level, this series of regulators can be placed in the off mode. The turning off current of this mode is as low as 150nA (typical value).
The TPS709-Q1 series is available in WSON-6 and SOT-23-5 packages.

---
