CE Approved Ms Premium High Efficiency Aluminum Housing Three Phase Induction AC Electric Asynchronous Motor

Product Description

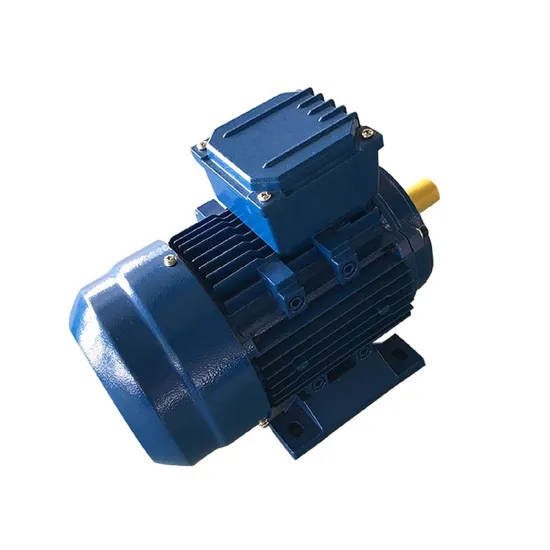

The Ms112M-8(1.5KW) 380V 8 Poles Aluminum Housing 3Phase Electric Motorfor Pumps Fans Transportation Agricultural machines CCC CE ISO9001 Use
Ms Three-phase Electric Motor are made of high-quality materials and conform to IEC standard. Which has good performance with low noise and little vibration. It is safe and reliable in operation, and can be maintained very conveniently.
1. Products Introduction The Ms112M-8(1.5KW) 380V 8 Poles Aluminum Housing 3Phase Electric Motorfor Pumps Fans Transportation Agricultural machines CCC CE ISO9001 Use have reliable quality with High coaxiality, loose fit of outer circle of bearing, sufficient power, low temperature rise and long service life. It also can provide you with better customer experience.

Operating Conditions
Ambient temperature	-15ºC<θ<40ºC
Altitude	Not exceeding 1000m
Rated voltage	380V
Rated frequency	50Hz/60Hz
Protection class	lP54,IP55
lnsulation Class	Class B/F
Cooling method	ICO141 Duty:S1 (continuous)

2. Product Parameter

Type	Rated Power	Rated Current(A)	Efficiency(%)	Power Factor(CosΦ)	Rated Speed(r/min)
	KW
380V 50HZ Synchronous Speed 3000r/min(2 Poles)
MS561-2	0.09	0.3	60	0.76	2750
MS562-2	0.12	0.37	63	0.78	2750
MS631-2	0.18	0.53	65	0.8	2780
MS632-2	0.25	0.69	68	0.81	2780
MS711-2	0.37	0.99	70	0.81	2800
MS712-2	0.55	1.4	73	0.82	2800
MS801-2	0.75	1.83	75	0.83	2825
MS802-2	1.1	2.58	77	0.84	2825
MS90S-2	1.5	3.43	79	0.84	2840
MS90L-2	2.2	4.85	81	0.85	2840
MS100L-2	3	6.31	83	0.87	2880
MS112M-2	4	8.12	85	0.88	2890
MS132S1-2	5.5	11	86	0.88	2900
MS132S2-2	7.5	14.9	87	0.88	2900
MS160M1-2	11	21.3	88	0.89	2930
MS160M2-2	15	28.8	89	0.89	2930
380V 50HZ Synchronous Speed 1500r/min(4 Poles)
MS561-4	0.06	0.27	50	0.68	1300
MS562-4	0.09	0.36	54	0.7	1300
MS631-4	0.12	0.44	57	0.72	1330
MS632-4	0.18	0.62	60	0.73	1330
MS711-4	0.25	0.79	65	0.74	1360
MS712-4	0.37	1.12	67	0.75	1360
MS801-4	0.55	1.57	71	0.75	1380
MS802-2	0.75	2.05	73	0.76	1380
MS90S-4	1.1	2.89	75	0.77	1390
MS90L-4	1.5	3.7	78	0.79	1390
MS100L1-4	2.2	5.16	80	0.81	1410
MS100L2-4	3.0	6.78	82	0.82	1410
MS112M-4	4.0	8.82	84	0.82	1435
MS132S-4	5.5	11.8	85	0.83	1445
MS132M-4	7.5	15.6	87	0.84	1445
MS160M-4	11	22.3	88	0.84	1450
380V 50HZ Synchronous Speed 1000r/min(6 Poles)
MS711-6	0.18	0.74	56	0.66	900
MS712-6	0.25	0.95	59	0.68	900
MS801-4	0.37	1.3	62	0.7	900
MS802-6	0.55	1.79	65	0.72	900
MS90S-6	0.75	2.29	69	0.72	910
MS90L-6	1.1	3.18	72	0.73	910
MS100L-6	1.5	3.95	76	0.76	940
MS112M-6	2.2	5.57	79	0.76	940
MS132S-6	3	7.4	81	0.76	960
MS132M1-6	4	9.75	82	0.76	960
MS132M1-6	5.5	12.9	84	0.77	960
MS160M-6	7.5	17	86	0.77	970
380V 50HZ Synchronous Speed 750r/min(8 Poles)
MS801-8	0.18	0.88	51	0.61	630
MS802-8	0.25	1.15	54	0.61	640
MS90S-8	0.37	1.49	62	0.61	660
MS90L-8	0.55	2.18	63	0.61	660
MS100L-8	0.75	2.53	71	0.67	690
MS100L2-8	1.1	3.32	73	0.69	690
MS112M-8	1.5	4.5	75	0.69	680
MS132S-8	2.2	6	78	0.71	710
MS132M-8	3	7.9	79	0.73	710
MS160M1-8	4	10.3	81	0.73	720
MS160M2-8	5.5	13.6	83	0.74	720

3.Product Application The Ms112M-8(1.5KW) 380V 8 Poles Aluminum Housing 3Phase Electric Motorfor Pumps Fans Transportation Agricultural machines CCC CE ISO9001 Use can be applied to the majority of machinery and equipment, such as metal cutting machines, water pumps, fans, transportation machinery, agricultural machinery and other equipment.
4.Related Products
5.Taicheng Factory&Workshop
6.Certificate

---
