Cycjet Lf30f Fiber Fly Laser Coding Machine on PP Pipe

Product Description

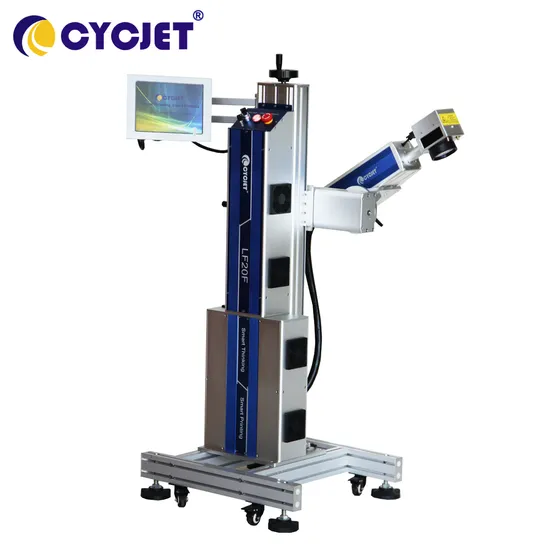

Product Picture:
Components of Machine:
Characters:
Laser oscillation in the fiber optical wave, low dissipation, good stability and is not affected by external dust gas and mechanical looseness, the output of a laser beam is stable.
100000 hours of zero- maintenance.
Processing speed is 2 to 3 times the traditional laser marking machine.
Wind cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, low consumption (800 w) or less, use cost.
Integrated design, small size (there are a whole cabinet and portable optional).
Environmental adaptation ability strong can be in vibration, shock, dust, humidity environment continuous work, easy to implement with optical fiber coupling, which can realize remote work.
Bar code, qr code, graphics, text rules and irregular marking serial number, etc.
Software running on WINDOWS platform, Chinese/English interface, can be compatible with AUTOCAD, CORELDRAW, PHOTOSHOP software, such as PLT, PCW, DXF, BMP, etc, but also can be used directly SHX, ttf font.
Application Scope:
Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.
Advantage: 1, Perfect design software, easy to learn and operation 2, Less Mechanical Faliure 3, Operation Status: Fly and Standstill 4, The PVC, PPR,PE Pipe Code will change color after mark,the demonstration of effects is better than ink priter. 5, The code can not move or erase it 6, No consumer goods, less production cost Terms of Payment: T/T, LC After-sale Service 1, Warranty Valid: 12 Month 2, Online or Spot Training
Details and Specifications:

PERFORMANCE		Frame Material	ALUM.
		Laser Device	Specialized Plastic Pipe & Cable Laser
		Power	≥30W
		Laser Wavelength	1064nm
		Galvanometer deflection	High Precision dual dimensional scanning system
		Marking speed	≤12000mm/s
		Master Control	Highly integrated board with 10 inch Color Touch screen
		Operating System	LINUX based with High Speed Pipe Marking Software
		Cooling	6 groups Cooling Fans
Marking Specifications		Focus Distance
		Marking line type	Dot matrix, bold, vector all in one(both dot matrix and vector)
		Minimum line width	0.012mm
		Repeatability accurate positioning	0.003mm
		Marking Area	Standard 110mm×110mm(Customized available)
		Marking height	Standard Character height 110mm
		Marking Length	Unlimited
		Positioning mode	Red light positioning and focusing
		Number of characters	Any line(multi-line) within marking range
		Line Speed	Standard 0~120m/min (depends on material &text)
Support type		Typeface	Chinese , English, available to customized
		Marking	Number, logo, image, letter, serials number, system date & time,etc...
		File format	CNF/PLT
		Bar code	CODE39,CODE128,CODE126,QR,Z-Code
Others		Power Supply	100-220V/50-60HZ
		Power Consumption	600W
		Net Weight	68kg
		Oversize	500mmX450mmX150MM
Environmental Requirement			0ºC-45ºC; humidity≤95%; non-condensing; no shaking
The Quality Standard of CYCJET Fly Laser Marking Machine
GB 7247-87	Radiation safety of laser products, requirements for equipment classification and user's Guide
GB10320-88	Electrical safety of laser equipment and facilities
ISO 9000-3	International software standards
GB/T12123-89	Sales packaging process
IEC 536	Classification of electrical and electronic equipment for protection against electric shock
