Flange Type PTFE/PFA Lined Ball Valve with Worm Gear

Product Description

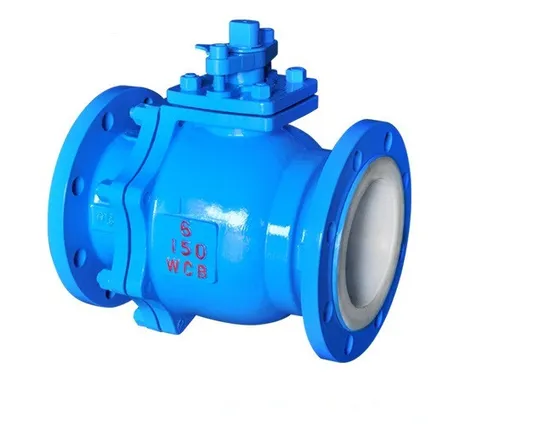

Product Description Detail images: Fluorine Polymer Lined Ball Valve
Overview:
Pioneer Lined Ball Valves are generally made from Grey Cast Iron,Cast Ductile Iron Carbon Steel or Stainless Steel with lining. It is a Full Port, Two PC design, Bolted Body Construction with Integral Ball Stem Unit, Replaceable Seat, Bubble Tight Shut-off,GlandlessDesign, Maintenance Free, Full Flow Efficient, Low Torque manually lever operated for easy operation. Size Range: 15mm to 400mm Feature & Benefits: Liner Locking
The PTFE,FEP,PFA,PVDF,PP,PE or PO lining is securely locked into the deep machined groove slot into the body & holes in casting ball.This prevents liner to collapse or blow out under full vacuum/high pressure applications & high temperature.
Integrated Ball & Stem
Encapsulated one PC design ball & stem. Rupture-proof ball & stem joint. Ensure trouble free frequent operations.
Two PC Design Body
Two PC design bolted body construction with WCB or stainless steel fasteners, minimize the joint leakages.
Low Torque Operation
The contact area (sealing area) of ball with seat is very less, thus operating torque is much lower than the plug valve. Lever is compactly designed to operate the valve with very low torque.
Design Standard
Pioneer Lined Ball Valves are designed in accordance with flange dimension of ANSI B16.5 & face to face dimension of GB/T 12221.
Lining Specifications:
Lining Material
We offer lining materials like PTFE,FEP,PFA,PVDF,PE,PO,PP.
Temperature:
PTFE Max : 260°C FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining Thickness
Min. 3.0mm
Spark Test
Body liners & all wet parts are spark tested at 15,000 Volts.
The body material is generally,Grey Cast Iron,Cast Ductile Iron,Cast Steel and alternatively .
we offer completely SS304,SS304lL,SS316,SS316L Specification

Basic mode	Q41F4,Q341F4,Q41F,Q41F46,Q341F,Q341F46,Q641F4,Q941F4,Q641F,Q941F,Q641F46,Q941F46
Nominal pressure	PN0.6-1.6(MPa)
Nominal diameter	DN15-350mm
Design code	API 608 API 6D
Driving mode	Manuan, electric, worm gear drive, pneumatic
Structure length	ASME B16.10
Flange size	ASME B16.5
Pressure test	API 598
Sign	MSS SP-25

Certifications
Company Profile Packing & Delivery Plywood case for safety sea shipping
FAQ 1. who are we?
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe
4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian

---
