High-Tech Qte300L-800 High Power Motor Cutting Machine Gang Type CNC Lathe Machine

Product Description

Product Description

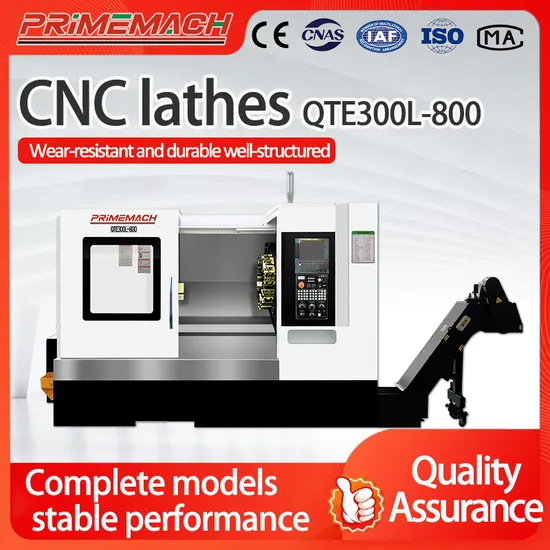

QTE300L-800 CNC lathe is a high-performance, high-precision CNC lathe designed to meet the needs of modern manufacturing for large complex parts processing. It is suitable for a variety of precision turning tasks and is widely used in heavy machinery, energy equipment, shipbuilding, aerospace and general machinery.
Detail
A chuck. There are multiple jaws on the chuck, which can be tightened or opened to fix or release the workpiece, ensuring that the workpiece remains stable during processing. The chuck shell part is orange and the jaw is metallic
Turn the tool holder. There are multiple tool positions on the tool holder, and each tool position is marked with a numerical number, such as "1", "2", "3", etc., which is used to clarify the position of the tool, facilitate the control system to accurately call the tool, and realize the rapid replacement of the tool in the automatic processing process.
Inside the machining area of the CNC machine tool. The chuck on the left side can be used to clamp the workpiece; On the right is a large rotary tool holder, which can install multiple tools, and switch different tools by rotating to carry out a variety of processing operations on the workpiece, such as turning, drilling, etc

CNC control system	GSK 980TC3
Maximum turning diameter	Φ 640 mm
Max machining diameter x length	Phi 420 x 800 mm
Spindle through hole diameter	Φ 80 mm
Maximum bar material machining diameter	Φ 70 mm
Maximum support quality	300kgf
Maximum spindle speed	3000rpm
Spindle end form	A2-8
Chuck size	10inch hollow chuck
X axis maximum travel	430mm
X axis fast moving speed	20m/min
Maximum z-axis travel	850mm
Z-axis fast moving speed	25m/min
Number of tools installed on the tower	12t
Outside diameter tool bar height	25*25mm
Inside diameter Maximum diameter of tool bar	Phi is 40 mm
Tailstock travel	500mm
Tailstock sleeve stroke	100mm
Tail seat sleeve taper	Morse number five
Spindle motor	15kw
Total machine power	35kw
Cooling tank capacity	240L
Machine height	2150mm
Floor area (length * width)	3200*2000mm
Gross machine weight	5600kg
SYNTEC/FANUC system	Tail seat thimble
High pressure effluent 30/50Bar	Automatic door

Company Profile
Anhui Primacon Intelligent Equipment Co., Ltd. is an Anhui Province SMEs and a national high-tech enterprise. Located in the beautiful city of Tongling, Anhui Province, the company focuses on the research, development, production and sales of multi-axis CNC lathes and machining centers. Introducing advanced technology from Germany and Japan, is committed to improving the quality of machine tools and high level of application, and we also offer automation integration services. Our products are mainly used in fields such as automotive manufacturing, aerospace, mold manufacturing, engineering machinery, and general equipment industry.
The company's main products:
1.High precision CNC lathe HQT series, QTE series; 2.High-precision turning and milling composite series; 3.Vertical, Horizontal, Gantry Machining Center series. We always adhere to the breakthrough innovation, deep plowing expertise, continue to strive forward!
Exhibition
Our Advantages
Certifications

Packaging & Shipping
FAQ
Q: What machining functions do your machining centers support?
A: Our machining centers support drilling, tapping, milling, boring, and turning functions, with multi-axis options (such as 3-axis, 4-axis, and 5-axis) to meet the needs of complex workpiece machining.
Q: What is the precision of your CNC lathes?
A: The machining precision of our CNC lathes typically ranges from 0.001mm to 0.003mm. Depending on the model, higher precision can be customized upon request.
Q: Can the machines be customized according to customer requirements?
A: Absolutely! We support customization of machining range, spindle power, automation level, and fixture and tooling configurations to meet your production needs.
Q: Can you provide automation solutions?
A: Yes, we can provide automation solutions, including automatic feeding systems, robotic arms, and production line integration.
Q: What does your after-sales service cover?
A: Our after-sales service includes providing detailed operation manuals, instructional videos, and remote technical support to help customers quickly learn how to operate the equipment. Additionally, we maintain dedicated service records for each customer to monitor equipment performance and ensure long-term stability. We also supply spare parts and respond promptly to customer inquiries and needs to ensure proper equipment functioning.
Q: What should I do if the machine breaks down?
A: If the machine breaks down, you can contact our after-sales team at any time. We offer remote video diagnosis, phone guidance, and, if necessary, dispatch engineers for on-site repairs.
Q: How long is the delivery time?
A: Standard models usually require 30-45 days for delivery. For customized models, the delivery time may take 60 days or longer, depending on the complexity. The exact delivery time will be confirmed with the order.
Q: How are the machines packaged and transported?
A: Our machines are packaged with waterproof and rustproof materials, reinforced with sturdy wooden crates, suitable for sea and long-distance transportation to ensure the products arrive at your specified location in perfect condition.
Q: What payment methods do you accept?
A: We accept various payment methods, including T/T bank transfers and Letters of Credit (L/C). Please contact us if you have other requirements.
Q: Do you have export experience?
A: Yes, we have been exporting machines to many countries worldwide for years and are familiar with export procedures, including customs declaration, clearance, and providing relevant certificates such as CO, invoices, and packing lists.

---
