Cak6161 Cak6161b Cak6161c Metal Torno CNC Lathe Machine Double Spindle CNC Lathe Machine

Product Description

Product Description

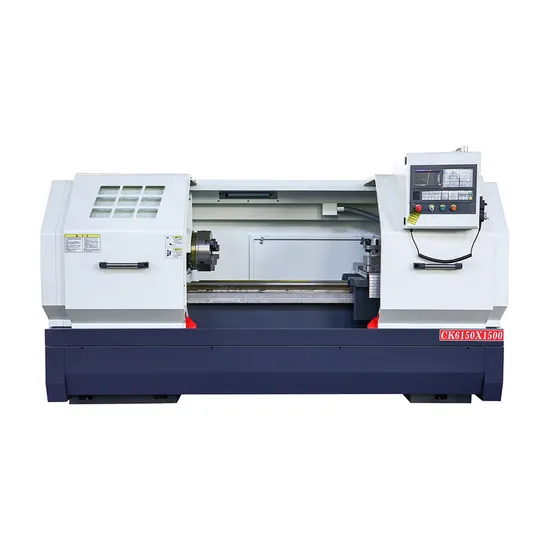

CK6150 Top Level Lathes Metal Horizontal Flat Bed CNC Lathe
CK6140/6150/6180/61100/61125 series CNC horizontal lathe has the characteristics of high precision, high power, high rigidity,etc. Its main components and structure have been optimized design, and it is the first choice for machining shafts, discs,sleeves, special-shaped surfaces and screw workpieces.GSK/SIEMENS/FANUC (optional) CNC system and full digital AC servo system, X and Z axis are all controlled by semi-closed loop,ball screw pair adopts C3 precision ball screw, electrical components are all imported or domestic famous brands, Comply with CE or domestic 3C certification.
Product Structure

Specification	ck6130	ck6140	ck6150	ck6180	ck6163
Swing over bed(mm)	300	400	500	800	630
Max turning diameter plate(mm)	100	200	300	480	350
Max processing length(mm)	400/320	750/1000/1500	750/1000/1500	1000/1500/3000	1000/1500
Number of spindle speed	electrodeless
Spindle speed range(r/min)	150-2000	150-2000	50-1700	25-850	25-850
Spindle hole	48	83	82	100	100
Main motor power(kw)	4	7.5	7.5	11	11
L*W*H(mm)	1620*1060*1600	2230*1280*1640	2655*1520*1860	3200/3700*1820*1780
Weight(kg)	1220	1650	2300	3600/3900/5400	3400/3700
X/Z positioning precision(mm)	0.012/0.013		0.025/0.03
Tool carrier form	Electric vertical four-station tool rest
Dia. of tailstock sleeve	75		100

1. Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected.
3. The post is located on precision contrite gears with a high repeated positioning accuracy.
4.Both chuck and tailstock are supplied with hydraulic or manual type.
5. The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
6. The spindle bore size is 52/80mm. The spindle system is high in the rigidity and accuracy.
7. Three gears controlled by a handle, stepless speed regulation, with lower noise and high- standard machining accuracy, is an environmental- protective machine.
8. The spindle is the high- rotate speed and sophisticated bearing with smooth surface.
9.Intergrated automatic lubrication system.
Important note::1. Please confirm your local voltage with our sales staff before ordering.2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you. Packaging & Shipping
Related products
Company Profile
Henan Rowdai Machinery Equipment Co., LTD we are located in Zhengzhou city, Henan Province. We are specialized in the manufacture of CNC machine center, Lathe machine,CNC Lathe Machine, Milling Machine, CNC Milling Machine, Grinding Machine, Band Saw. Our products are widely used in the auto,mould,construction machinery, aviation, high speed railway and energy industry. We have our own share in many markets, and the products have been widely exported to Europe, America, Australia, Middle East, Southeast Asia, and Africa and so on.
Our workers are all have over 10 years working experience with Machine tools, we have professional inspector team, Focusing on addressing customers' needs, we aim at quality machines and perfect after-sales services to the customers.What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
Inspection & factory visit
After the completion of each machine, we will arrange customers to return to the factory for inspection or installation of professional personnel inspection, to ensure that all machines qualified before arranging delivery
FAQ
1. How long is the warranty?
A: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods. If needed ,we will provide free accessories
2. Can I have my own customized product?
A: Yes, your customized requirements for color, logo, design, package, carton mark, etc. are welcome
3. How can I get sample and how long will it take?
A: Sample policy is different for different items. Please kindly contact us to get details.
4. What's the MOQ?
A: MOQ is different for different items, please kindly contact us for confirming.
5. How do I pay for my purchase order?
A: T/T, L/C at sight, Western Union, MoneyGram
6. What is your terms of payment?
A: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance
7. How about your delivery time?
A: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order

---
