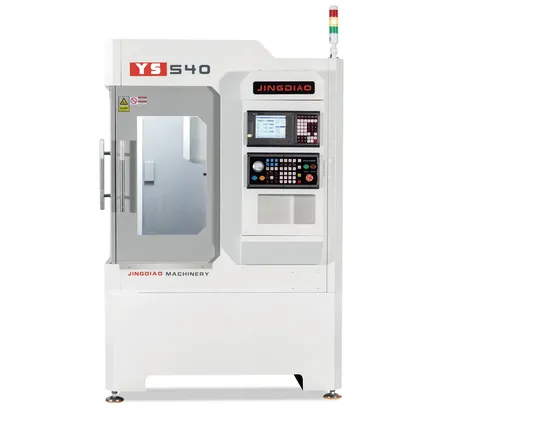

3 Axis CNC Milling Machine Ys-540 New Product Huazhong Controller Mechanical Spindle 3.8kw Bt30

US$10,500.00
1-2 Pieces
US$10,200.00
3+ Pieces

Basic Info.

Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
X-Axis Travel
400mm
Z-Axis Travel
200mm
Y-Axis Travel
500mm
X-Axis Fast Moving Velocity
35m/Min
Y-Axis Fast Moving Velocity
35m/Min
Various Cutting Suggested Speeds
10m/Min
Spindle Taper
Bt30
Atc
8
Transport Package
Wooden Case
Specification
1540*1540*2350mm
Trademark
neoronko
Origin
Guangdong China
HS Code
8457101000
Production Capacity
500

Product Description

Application scope of processing Normal Use Value Maximum Value
processing capability maximum drilling diameter(mm) Aluminum ф 14 / steel ф 10 Aluminum ф 18 / steel ф 14
maximum tapping diameter(mm) Aluminum m10 / steel m 8 Aluminum m 12 / steel m 10
Maximum milling
cutter diameter (mm)		 ф60 ф100
speed of spindle 5000 rpm Optional 9000rpm/30000rpm
taper hole of spindle BT30
Tool magazine capacity 6 8
repeated positioning accuracy 0.01 mm 0.01 mm
Surface engraving accuracy ±0.06 Optional ±0.01
workbench Distance from table to
spindle end		 150mm 350mm
Effective stroke of countertop 500*400mm
Travel X-axis 400mm
Y-axis 500mm
Z-axis 200mm
Feed X-axis fast moving velocity 25m/min 35m/min
Y-axis fast moving velocity 25m/min 35m/min
Z-axis fast moving velocity 20m/min 25m/min
Various cutting
suggested speeds		 8m/min 10m/min
Spindle Spindle power 2.6kw Optional 3.9kw/4.5kw
Spindle type Mechanical spindle Optional motorized spindle
Spindle taper BT30
Dimensional &
weight		 Dimensions 1350×1050×2050 mm
Weight 1900KG

Machine tool specifications and component items
Specification Parameter Optional
Guide rail Taiwan Hiwin 25 Linear guideway
Ball screw Taiwan 25 ball grinding precision
CNC Control System HUAZHONG SYNTEC/GSK
Optional 4 axis center height 125mm/170mm
Optional 4 axis motor power 0.75kW/1.2kW
Optional 4 axis system HUAZHONG SYNTEC/GSK
Optional 4 axis servo HUAZHONG SYNTEC/GSK
Optional 5 axis center height 160mm
Optional 5 axis motor power 0.4kW/0.75kW
Optional 5 axis system HUAZHONG SYNTEC/GSK
Optional 5 axis servo HUAZHONG SYNTEC/GSK
