One-Piece Casting CNC Lathe Machine

Product Description

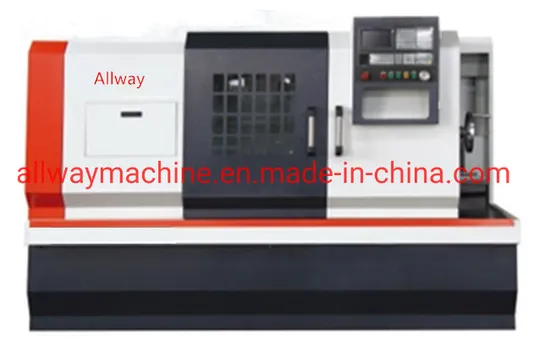

CLK6165E ONE-PIECE CASTING CNC LATHE MACHINE
1. CLK6165E ONE-PIECE CASTING CNC LATHE MACHINE SPECIFICATION

	CLK6165E
Max. swing over bed	650mm
Max. swing over cross slide	400mm
Max. processing length	1000/1500/2000/3000mm
Spindle transmission type	three-gear, step-less in gear
Spindle speed steep	step-less
Spindle speed	10-85,40-350, 110-850 rpm
Spindle nose	C11
Spindle bore	Φ105mm
Spindle taper	120 1: 20
Spindle motor	11 kw
Max. tool-post travel	X:500mm
Ball screw dia. and pitch	X:Φ25*5mm Z:Φ50*10mm
Rapid feed speed	X:4000mm/min Z:5000mm/min
Position accuracy	X:0.025mm Z:0.03mm
X, Y and X axes repeatability	X:0.01mm Z:0.015mm
Processing accuracy	IT6-IT7
Workpiece surface roughness	Ra1.6
Tailstock sleeve dia.	Φ100mm
Tailstock sleeve travel	250mm
Tailstock sleeve taper	MT6#
Tool-post	4-station electric turret
Tool-post at optional	6-station or 8 station electric turret
Toolbar section size	32*32mm
Controller	GSK980TDC
Controller at optional	KND, FANUC, Siemens

2.CLK6165E CNC LATHE MACHINE FEATURES
guide width 550mm
higher stability one-piece machine bed
3 gear spindle speed, stepless in gear
higher rigidity pedestal
wider layer board
integrated automatic lubrication system
3. CLK6165E CNC LATHE MACHINE UASGE
This machine is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous metal material. With the feature of big power and higher rigidity, this machine is applied to heavy-cut the inner circle, ex-circle, end surface and thread in both metric and English system, and could drill and bore holes.
4.CLK6165E CNC LATHE MACHINE STANDARD ACCESSORIES
GSK980TDC or Siemens 808d NC system
11kw common main motor and frequency changer
4 station electric turret
320mm manual chuck
manual tailstock
automatic integrated lubrication system
coolant system
lighten system
half cover
5.CLK6165E CNC LATHE MACHINE OPTIONAL ACCESSORIES
Fanuc 0I mate TD NC system
6 station or 8 station electric turret
steady rest
follow rest
11/15 kw servo motor
15 kw inverter motor
12" domestic none thru-hole hydraulic chuck
12" domestic thru-hole hydraulic chuck
12" Taiwan none thru-hole hydraulic chuck
12" Taiwan thru-hole hydraulic chuck
Full enclosed cover

---
