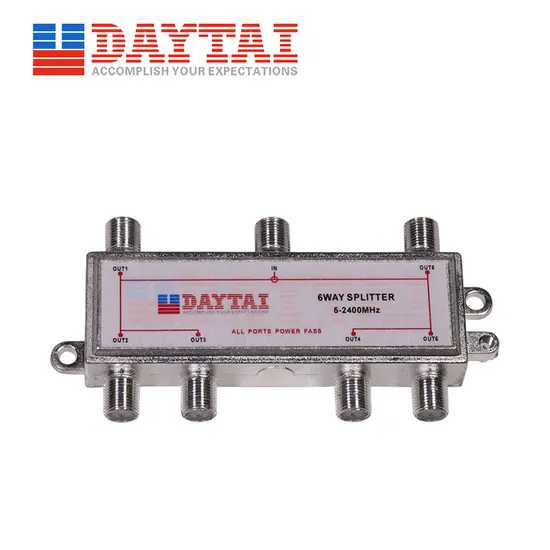

6 Way DC Power Passing Coaxial TV Satellite Splitter 5-2400MHz

Product Description

Description
6 Way Satellite Splitter,5~2400MHz,All Port DC Power Pass,impedance:75Ω,F Female Connector.
Parameter

ITEM	PORTS	FREQUENCY RANGE(MHZ)	SPECIFICATION(dB)
INSERTION LOSS	IN-OUT	5-47	4.0
		47-470	4.5
		470-900	4.8
		900-2050	4.8
		2050-2150	5.2
		2150-2400	5.8
RETURN LOSS	IN/ OUT	5-47	8
		47-470	8
		470-900	8
		900-2050	10
		2050-2150	10
		2150-2400	10
ISOLATION	OUT-OUT	5-47	10
		47-470	15
		470-900	15
		900-2050	18
		2050-2150	18
		2150-2400	18

Pictures
Company Details
Exhibition
Package & Delivery
FAQ
Q1:What's the delivery time?
Re:The lead time is 10~15 days after order confirmed.
Q2:Can you send me a free sample?
Re: We are willing to send you free sample, if you would like to pay the shipping costs.
Q3:What's your payment terms?
Re: 30% in advance, and 70% before shipment.
Q4:What's the payment method?
Re: We accept T/T, Western Union, and Paypal.
Q5:How to ship the items to me?
Re: Courier (DHL,TNT,FEDEX,UPS,EMS) , By Air, By Sea are available.

---
